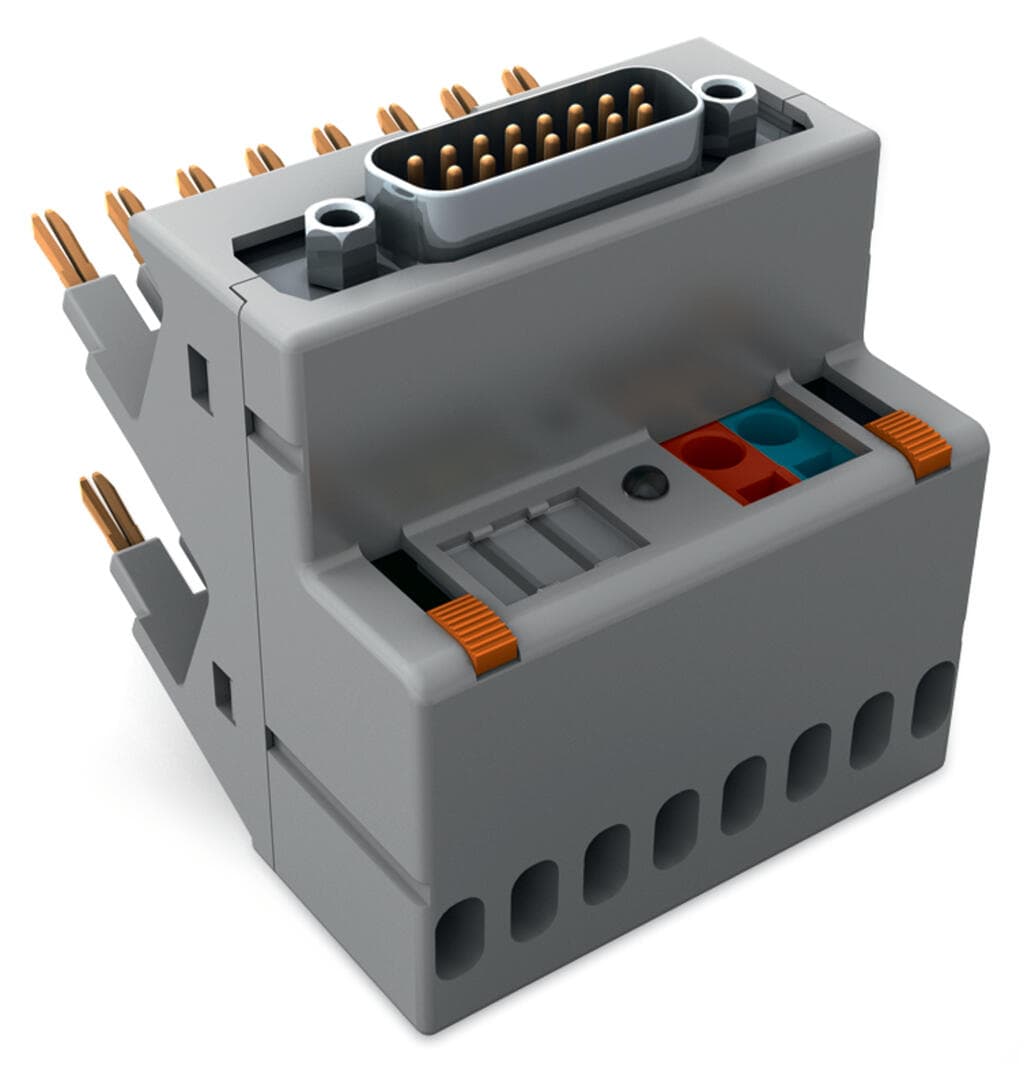

Product Model
857-986
Selling Points
- 1High-Side Switching Input: Ideal for applications requiring precise voltage control.
- 28-Channel Digital Input: Supports multiple digital signals for complex system integration.
- 3Pluggable Module Design: Easy to install and remove without damaging the module.
- 4Operates in Harsh Environments: Compatible with ambient temperatures from -25°C to +70°C.
- 5Green LED Status Indicator: Provides visual confirmation of module status and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The specified technical data are maximum values. They may be limited by the accessories used. | Inputs/outputs | 8-channel digital input |
Circuit type | High-side switching input | Nominal operating voltage | DC?24?V |
Operating voltage range | ±30?% | Total current | 3A |
Limiting continuous current | 1?A | Contact resistance | ≤?10?mΩ |
Status indicator | Green LED | Dielectric strength (contact/contact) (AC, 1 min) | 0.5kV<sub>rms</sub> |
Protection type | IP20 | Performance level | 2 |
Mounting type | Pluggable module | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.668MJ |
Weight | 48.2g | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
Standards/specifications | DNV | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 19-17-90-01 | eCl@ss 9.0 | 19-17-90-01 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4045454995195 | Customs tariff number | 8536904000 |
CAS-No. | 25550-51-0 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 663a877b-9b76-4542-b096-037e10f0c686 | SCIP notification number (Belgium) | e39bb783-c3c7-4add-ad69-ed6ddf9c5787 |
SCIP notification number (Bulgaria) | 6668660b-10ae-4fcf-854c-ecc59edb7a93 | SCIP notification number (Czech Republic) | 17ee4a58-9c2e-4086-a7d0-9a9bb22b59d8 |
SCIP notification number (Denmark) | f76607d9-7779-4788-9834-14f3a8f6c59b | SCIP notification number (Finland) | 9842c522-8ea6-42d0-a43e-2784c076f96c |
SCIP notification number (France) | 0ba05f8d-e89c-4ae2-b7b6-bcf5599d8202 | SCIP notification number (Germany) | 8c611a44-c947-433a-87c6-f590ad4b8427 |
SCIP notification number (Hungary) | 175a2d46-fb90-42d0-a0a0-525f6cb8e1ed | SCIP notification number (Italy) | 8bb27a39-7bcc-42c0-b9c3-e8bca4ee0f41 |
SCIP notification number (Netherlands) | 3c5cd1d0-d150-47f4-b493-90ac68e8c0d2 | SCIP notification number (Poland) | 6e75cc26-14b8-4fa0-8d72-f59d099d1d8b |
SCIP notification number (Romania) | 53cf1466-9fde-4591-a8e8-856e02b7a0dd | SCIP notification number (Sweden) | c24c0314-367e-4829-a493-4ebea9cb60f0 |
Pluggable connector | D-subminiature male connector | Pole number 1 | 15 |
Connection type 1 | System | Design 2 | Plug for jumper slot |
Pole number (2) | 16 | Connection type 2 | Field |
Pole number (3) | 2 | Connection type 3 | Power supply |
Connection technology 3 | CAGE CLAMP? | Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
