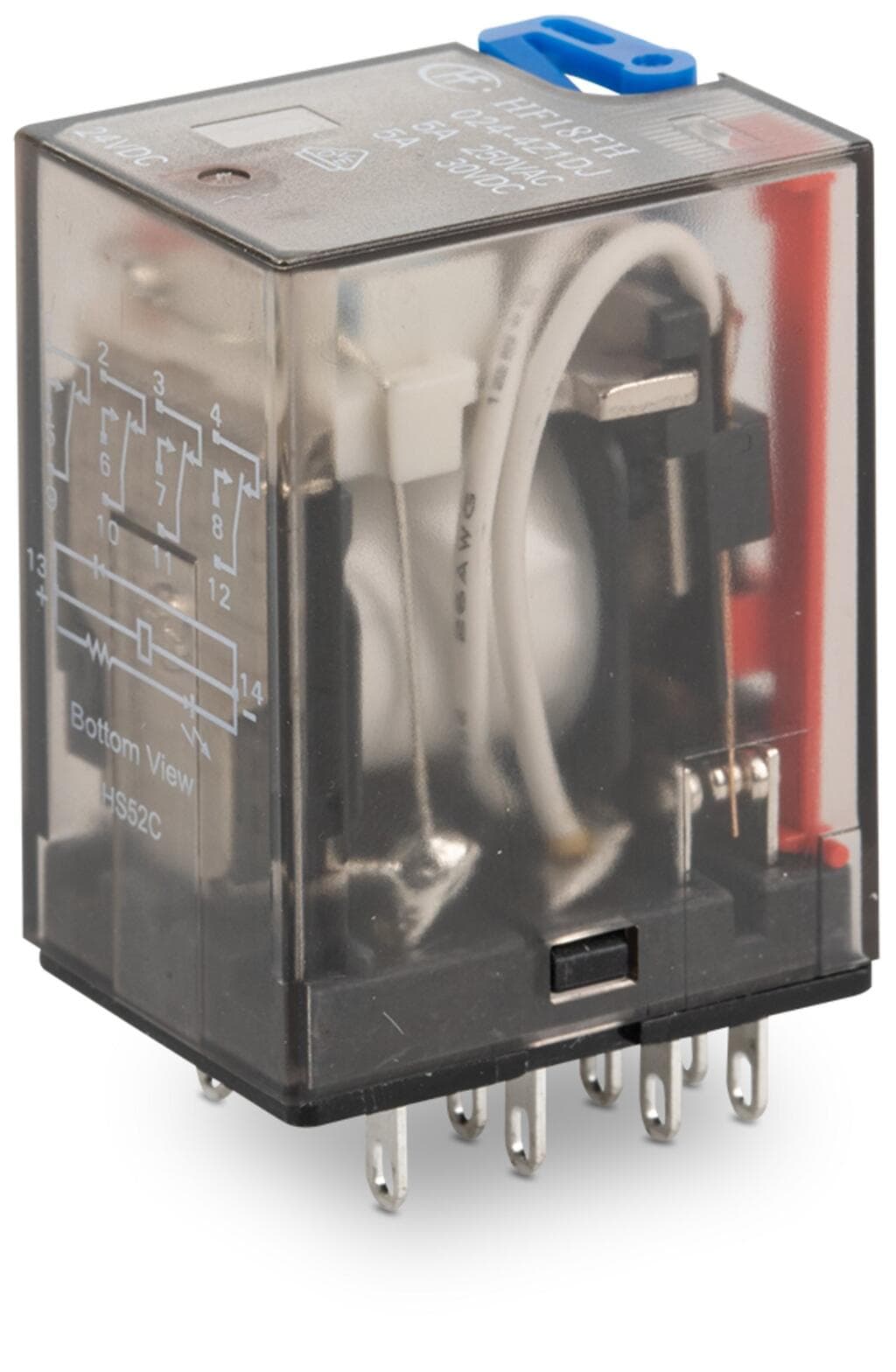

Product Model
858-150
Selling Points
- 1Reliable 24VDC operation with 4 changeover contacts.
- 2Compact pluggable module design (22 mm width, 28 mm depth).
- 3High mechanical life (20 x 10^6 switching operations).
- 4Limiting continuous current: 5 A.
- 5Compatible with industrial environments (-40°C to 70°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 1.5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 1.5?kVrms | Protection type | IP20 |
Width | 21.5?mm?/ 0.846?inches | Height from the surface | 35?mm?/ 1.378?inches |
Depth | 28?mm?/ 1.102?inches | Mounting type | Pluggable module |
Note (material data) | Information on material specifications can be found here | Weight | 35.2g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C | Ambient temperature (storage) | -40 … +80 °C |
Standards/specifications | EN 61810-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 3?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143531931 | Customs tariff number | 8536490050 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | DC?24?V |
Nominal input current at U<sub>N</sub> | 37?mA | Number of changeover contacts | 4 |
Contact material (relay) | AgCe | Limiting continuous current | 5?A |
Inrush current (resistive) max. | (AC) 15?A?/ 4?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?1250?VA;?DC (see load limit curve) | Recommended minimum load | 12?V?/ 100?mA |
Pull-in time (typ.) | 25ms | Drop-out time (typ.) | 25ms |
Bounce time (typ.) | 4ms | Electrical life (NO; resistive load; 23?°C) | 100?x 103 switching operations |
Mechanical life | 20?x 10? switching operations | Status indicator | Red LED |
Specifications may be subject to change without notice
