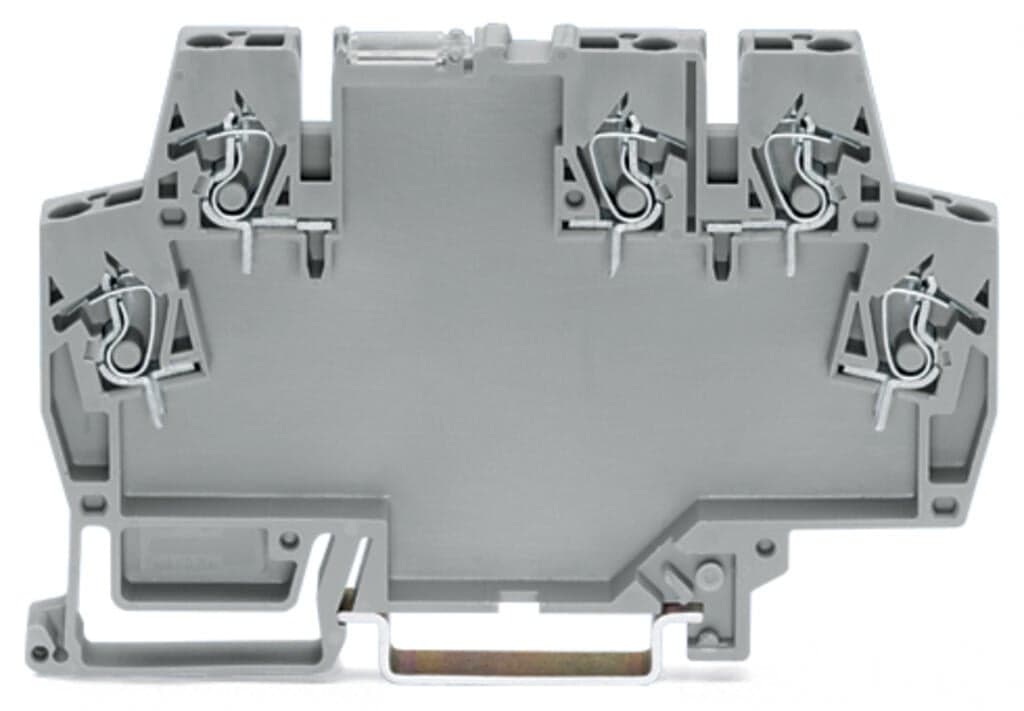

Product Model
859-110
Selling Points
- 1Universal Compatibility: Designed for rail-mounted terminal blocks.
- 2High Current Capacity: Supports up to 2.50 mm² connectivity.
- 3Durable Construction: Gray color housing provides excellent durability.
- 4Easy Installation: Simple and secure connection system.
- 5Versatile Applications: Suitable for various automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?250?V | Nominal current (connection) | 6A |
Nominal current (jumper) | 17A | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 3 |
Protection type | IP00; IP20 with end and intermediate plate | Connections (number) | 5 |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Width | 6?mm?/ 0.236?inches | Height | 91?mm?/ 3.583?inches |
Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches | Housing design | Rail-mount terminal block |
Mounting type | DIN-35 rail | Mounting position | any |
Color | gray | Flammability class per UL94 | V0 |
Housing material | PA 6.6 | Fire load | 0.338MJ |
Weight | 14.4g | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Limit temperature (plastic) | 105°C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-18-27-02 |
eCl@ss 9.0 | 27-18-27-02 | ETIM 9.0 | EC001031 |
ETIM 8.0 | EC001031 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821809654 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
