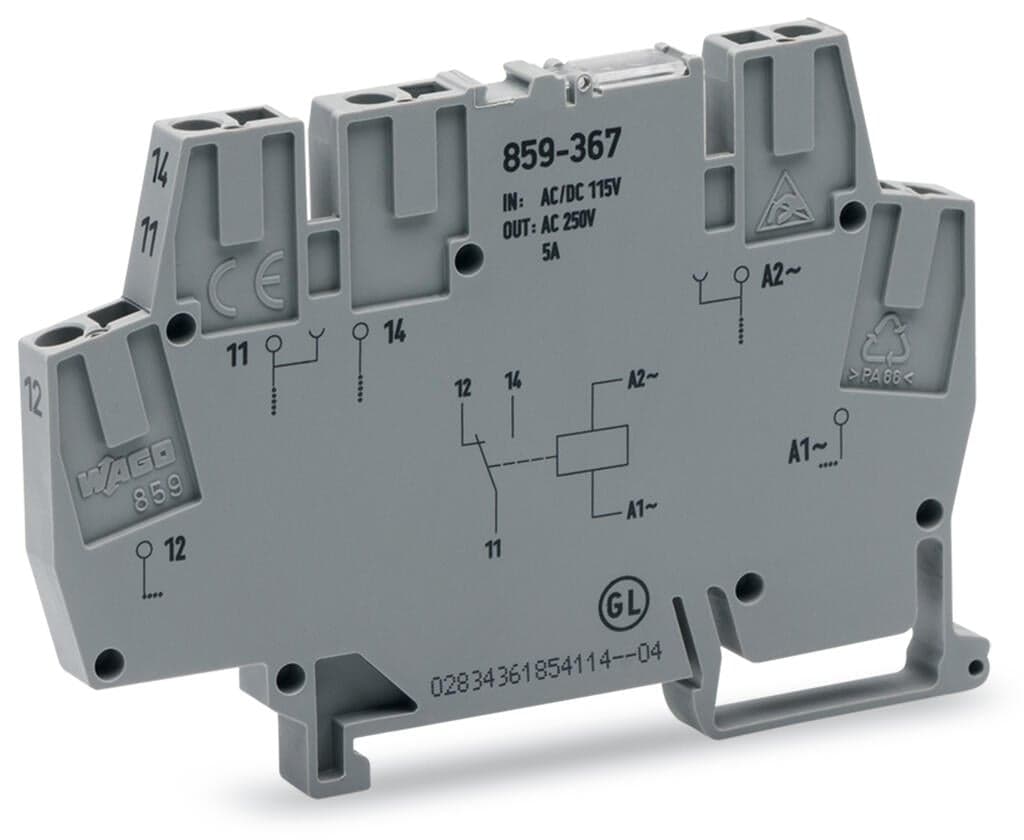

Product Model
859-367
Selling Points
- 1Designed for continuous operation in a wide temperature range (-40°C to 50°C).
- 2Handles inductive loads with effective protection circuits.
- 3Utilizes CAGE CLAMP connection technology for secure and efficient connections.
- 4Measures 6 mm in width and 91 mm in depth, perfect for space-constrained applications.
- 5Includes a red status indicator and defined switch-on threshold for enhanced safety and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. | Rated voltage | 300V |
Rated surge voltage | 4kV | Overvoltage category | III |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Protection type | IP20; in connected state or when using 859-525 end plate |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Mounting type | DIN-35 rail | Mounting position | Horizontal (standing/lying); vertical |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.338MJ |
Weight | 22.5g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143601054 |
Customs tariff number | 85364900990 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 17ffb2b6-7af4-48a6-bf90-b70420038c8f |
SCIP notification number (Belgium) | 4763072e-8a94-4a9f-99a1-102a4e7dc54d | SCIP notification number (Bulgaria) | 7f8014de-2b9c-434f-9f3a-054d3eecfc21 |
SCIP notification number (Czech Republic) | 0f788269-b46a-40af-b3ab-f4d95882a2f2 | SCIP notification number (Denmark) | 1177fbad-72df-4659-8d07-2a8d4a137456 |
SCIP notification number (Finland) | f663f153-644a-4141-8256-d772d6d9b558 | SCIP notification number (France) | bd922c73-3532-48b9-a9ce-3aafac8340ef |
SCIP notification number (Germany) | d6cbfbc1-05a3-4dec-aa44-b51373552681 | SCIP notification number (Hungary) | 21d0af5d-47d1-4d32-a2ee-3ddd69078b06 |
SCIP notification number (Italy) | dbb9eded-b5dd-4ef4-95db-8ca0234ee075 | SCIP notification number (Netherlands) | c52b089f-fc2b-452b-a98a-faa38efac6de |
SCIP notification number (Poland) | 693f0a0c-66aa-44e5-a694-558c5dc02c29 | SCIP notification number (Romania) | 0e1e97fb-d8f2-406d-8fce-0c458b5cca06 |
SCIP notification number (Sweden) | d5bfb43c-2349-4fa5-8fd5-7f36fec3705b | Nominal input voltage U<sub>N</sub> | AC?115?V |
Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 5?mA |
Switch-on threshold (relay/LED) | AC?95?V?/ AC?80?V | Switch-off threshold (relay/LED) | AC 60?V?/ AC 60?V |
Number of changeover contacts | 1 | Contact material (relay) | AgSnO2 |
Limiting continuous current | 5?A | Inrush current (resistive) max. | (AC) 20?A?/ 0.02?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?1250?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 10?V?/ 10?mA;?24?V?/ 1?mA |
Pull-in time (typ.) | 15ms | Drop-out time (typ.) | 25ms |
Bounce time (typ.) | 3.5ms | Electrical life (NO; resistive load; 23?°C) | 50?x 103 switching operations |
Mechanical life | 5?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 180?min-1 |
Status indicator | Red LED |
