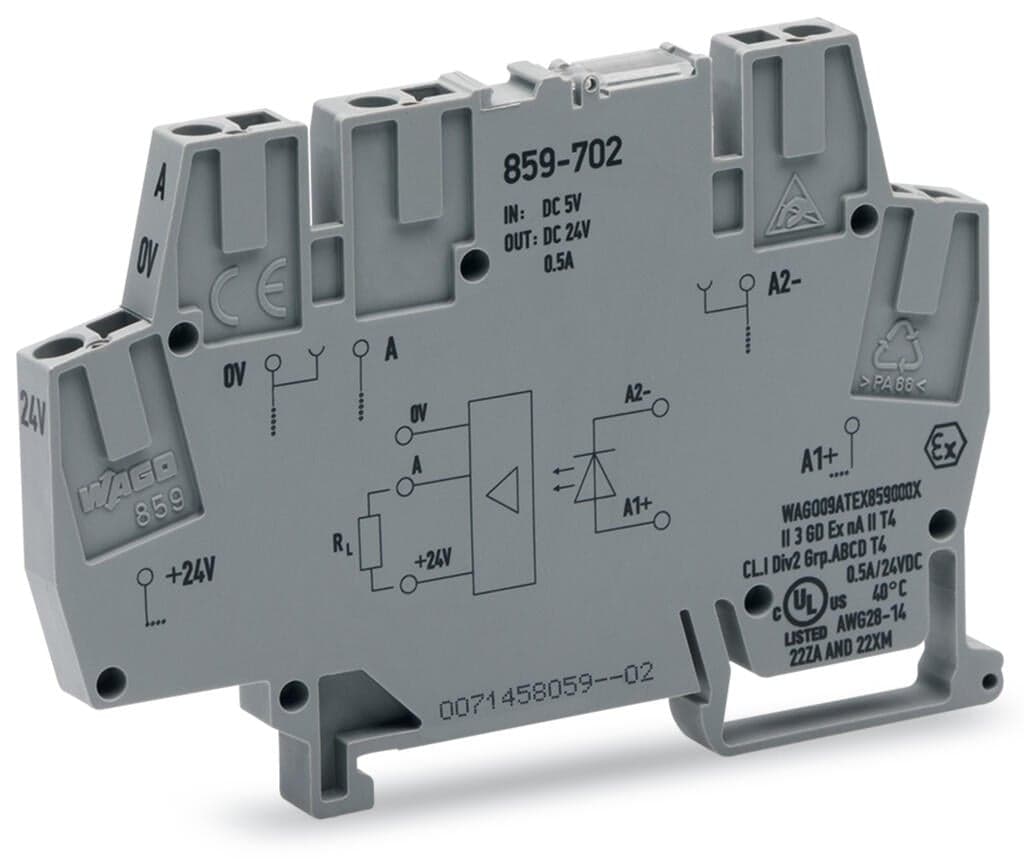

Product Model
859-702
Selling Points
- 1Highly Reliable Signal Isolation: Ensures safe and reliable electrical connections.
- 2Compact Design: Measuring 6mm in width, perfect for space-constrained applications.
- 3Wide Operating Temperature Range: Operates from -25°C to +55°C, suitable for various environments.
- 4Fast Switching Frequency: Supports up to 10 kHz, ideal for high-speed signal processing.
- 5Durable Construction: Built with gray color and reinforced insulation for long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms | Insulation type (control/load circuit) | Basic insulation |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
Insulation type (to adjacent devices of different types) | Basic insulation | Protection type | IP20; in connected state or when using 859-525 end plate |
Connection technology | CAGE CLAMP? | Solid conductor | 0.2 … 2.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor | 0.14 … 2.5 mm2 / 26 … 14 AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm2 / 26 … 16 AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Mounting type | DIN-35 rail | Mounting position | horizontal (standing/lying); vertical |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.338MJ |
Weight | 18.3g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-26-15-03 | eCl@ss 9.0 | 27-26-15-03 |
ETIM 9.0 | EC001504 | ETIM 8.0 | EC001504 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143604673 | Customs tariff number | 8541500080 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | c0c429b8-b963-4033-9eb6-a83265999ee3 | SCIP notification number (Belgium) | 473cf9fe-19a6-4aff-91ee-0f528d956901 |
SCIP notification number (Bulgaria) | 6ffc8186-6a2e-4cc2-ac47-4be7d8c98d14 | SCIP notification number (Czech Republic) | 32c0f01a-cd18-4e25-87c7-6e2528a5b2a9 |
SCIP notification number (Denmark) | c722c36f-29ab-4449-b503-31e55ab70764 | SCIP notification number (Finland) | d9fe71bb-90de-41ea-a3ab-0c7456c7e350 |
SCIP notification number (France) | 1f633d51-1540-4ec9-941b-c9d778efd901 | SCIP notification number (Germany) | 46013965-4536-4ff8-9010-303bf6dacc26 |
SCIP notification number (Hungary) | b1073416-4fb3-4d9a-af15-dcc19afc7652 | SCIP notification number (Italy) | 0d6933b0-8d26-4036-95db-15ca3764efb8 |
SCIP notification number (Netherlands) | 82534054-3721-42ea-b0dc-460d8fdcbde5 | SCIP notification number (Poland) | 0a5ac87f-063e-4241-b55d-6675bf946d30 |
SCIP notification number (Romania) | 80fa5b2e-b632-4e60-9d3c-fd81e5993956 | SCIP notification number (Sweden) | b97515fe-c12b-44d4-a29e-0619ea1fbdde |
Nominal input voltage U<sub>N</sub> | DC?5?V | Input voltage range (low level) | DC 0 … 1.5 V |
Input voltage range (high level) | DC?4 … 6.25?V | Nominal input current at U<sub>N</sub> | 11.7 mA |
Circuit type | 3-wire connection | Limiting continuous current | 1 A |
Nominal output voltage | DC?24?V | Output voltage range | DC 15 … 30 V |
Voltage drop | ≤ 1.3 VDC | Leakage current at rated voltage | ≤ 1 μA |
Output closed-circuit current (without load) max. | 11mA | Turn-on time | ≤ 4 μs |
Turn-off time | ≤ 17 μs | Switching frequency | ≤ 15 kHz |
Status indicator | Red LED |
Specifications may be subject to change without notice
