Product Model

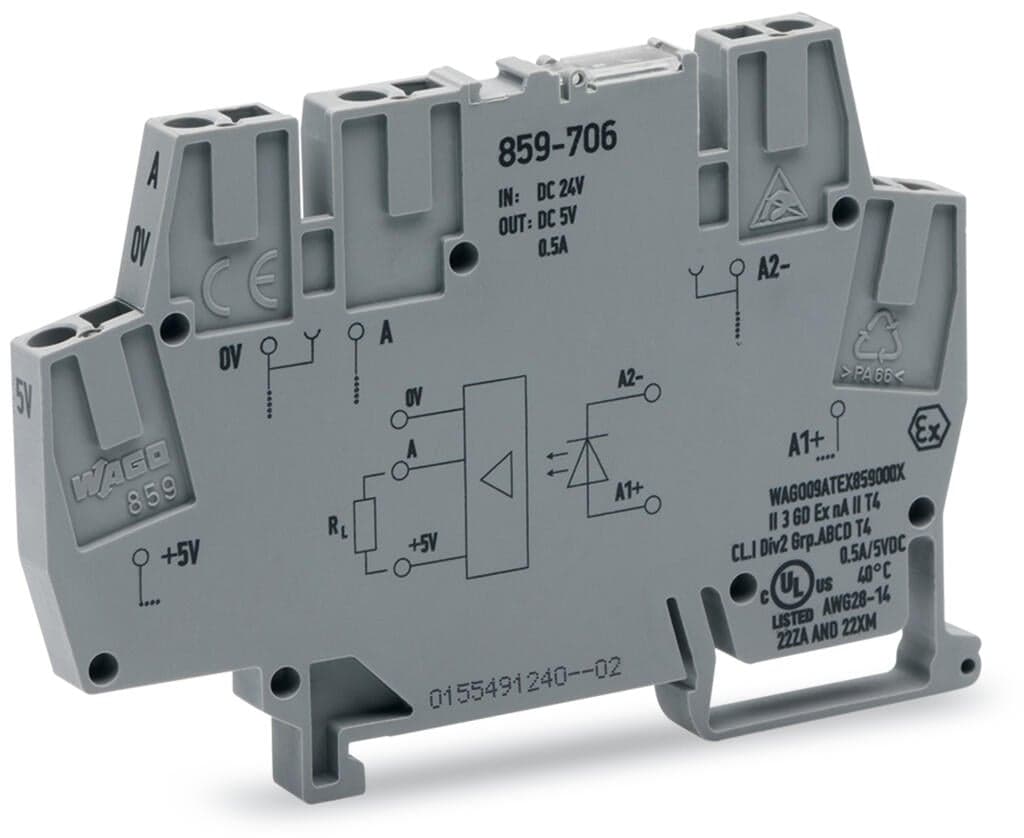

859-706
Selling Points
- 1Ensures safe and dependable operation in signal processing networks.
- 2Operates at a frequency of 10 kHz for efficient signal transmission.
- 3Module width is 6 mm, making it suitable for space-constrained applications.
- 4Functional from -25°C to +55°C, ensuring versatility in different environments.
- 5Built with reinforced insulation for long-lasting performance and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms | Insulation type (control/load circuit) | Basic insulation |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
Insulation type (to adjacent devices of different types) | Basic insulation | Protection type | IP20; in connected state or when using 859-525 end plate |
Connection technology | CAGE CLAMP? | Solid conductor | 0.2 … 2.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor | 0.14 … 2.5 mm2 / 26 … 14 AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm2 / 26 … 16 AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Mounting type | DIN-35 rail | Mounting position | horizontal (standing/lying); vertical |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.338MJ |
Weight | 18.5g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-26-15-03 | eCl@ss 9.0 | 27-26-15-03 |
ETIM 9.0 | EC001504 | ETIM 8.0 | EC001504 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143604697 | Customs tariff number | 8541500080 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 6318c01b-0a70-48bd-9161-02957a783b8a | SCIP notification number (Belgium) | 242f89b0-7912-4c88-8d23-7d5ef3f9db8a |
SCIP notification number (Bulgaria) | e5d92170-3ed4-4a81-89fc-aabd25fb0b5f | SCIP notification number (Czech Republic) | 7b142b70-e95d-4faa-9180-e2653b5062d9 |
SCIP notification number (Denmark) | 652efbcb-f729-4ac5-82dd-d78b9ea8cc93 | SCIP notification number (Finland) | 96a0bbb5-85a8-4333-8b2d-0bee0b8ba819 |
SCIP notification number (France) | 3075466b-8c94-4f27-a162-17f3bdff67ad | SCIP notification number (Germany) | a255cf19-b730-42a2-85b9-fc740ce38d35 |
SCIP notification number (Hungary) | abfb4596-d432-44d9-8ef4-09bfcce93a7b | SCIP notification number (Italy) | 0a530d8e-0a15-41ed-9850-8c890a4030d4 |
SCIP notification number (Netherlands) | d2a565de-f8c0-4959-9fdb-0e3ba43b9035 | SCIP notification number (Poland) | c89d8b55-d35b-41c3-b023-5db40c0f0f80 |
SCIP notification number (Romania) | 54a360b1-b5bd-4de7-86b8-5321289fe7a0 | SCIP notification number (Sweden) | 036ac102-5c42-4e78-843e-5c8217f85582 |
Nominal input voltage U<sub>N</sub> | DC?24?V | Input voltage range (low level) | DC 0 … 10 V |
Input voltage range (high level) | DC 16 … 30 V | Nominal input current at U<sub>N</sub> | 12.3 mA |
Circuit type | 3-wire connection | Limiting continuous current | 0.5?A |
Nominal output voltage | DC?5?V | Output voltage range | DC 4 … 6.25?V |
Voltage drop | ≤ 0.8 VDC | Leakage current at rated voltage | ≤ 1 μA |
Turn-on time | ≤ 3 μs | Turn-off time | ≤ 13 μs |
Switching frequency | ≤ 20 kHz | Status indicator | Red LED |
