Product Model

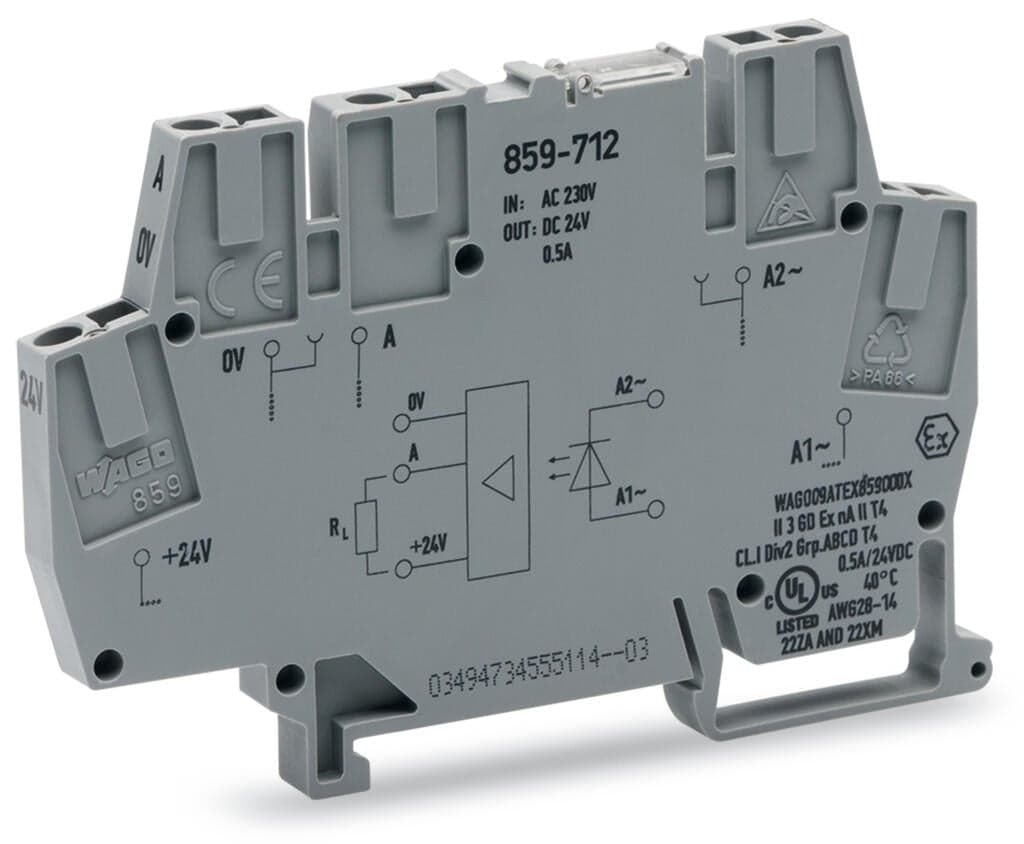

859-712
Selling Points
- 1Robust Low-Side Switching: Designed for reliable operation in industrial environments.
- 2DIN-35 Rail Mounting: Compact 6mm width fits perfectly on DIN-35 rail systems.
- 3Red LED Status Indicator: Easy visual indication of status and operation.
- 4Reinforced Insulation: Ensures safe isolation and protection against electrical hazards.
- 5Compliant with Industrial Standards: Meets EN 61000-6-2, EN 61000-6-3, and UL 508 standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Type of circuits | Mains circuits | Overvoltage category | II |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 3?kVrms |
Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) | Insulation type (to adjacent devices of different types) | Basic insulation |
Protection type | IP20; in connected state or when using 859-525 end plate | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Width | 6?mm?/ 0.236?inches | Height | 91?mm?/ 3.583?inches |
Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches | Mounting type | DIN-35 rail |
Mounting position | horizontal (standing/lying); vertical | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Material group | I | Flammability class per UL94 | V0 |
Fire load | 0.338MJ | Weight | 15.4g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +55 °C | Ambient temperature UL (operation at U<sub>N</sub>) | -25 … +40 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4055144130218 |
Customs tariff number | 8541500080 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 100897eb-1314-4b82-8867-b9c6c6e86187 |
SCIP notification number (Belgium) | c07a0c21-992b-4d77-8469-1ae95bcc1824 | SCIP notification number (Bulgaria) | 25af3641-d92a-4797-8b02-ba2215de6706 |
SCIP notification number (Czech Republic) | 1f05f530-2202-4398-a6dd-294f4cbd62da | SCIP notification number (Denmark) | d181df40-dac5-4804-9e65-6f6b7365dba4 |
SCIP notification number (Finland) | 8fe5eb1a-4ad4-42c2-a30d-647cb6220bc6 | SCIP notification number (France) | c78dbb24-1d1a-4c9f-a734-a62059b882dc |
SCIP notification number (Germany) | 00a76a12-8d37-4ca9-9d7c-b2e8466fc8c0 | SCIP notification number (Hungary) | e6018d63-bdd4-4068-baa6-dfce07aae4f0 |
SCIP notification number (Italy) | 874b3706-7f93-4553-a528-ff0388c22074 | SCIP notification number (Netherlands) | 90acae96-e4ff-40df-b180-f69ed6c9b57e |
SCIP notification number (Poland) | 83da62e6-ba4f-4920-8124-4132bda69ac6 | SCIP notification number (Romania) | 582fc0f6-d75f-4aca-8bb5-1ae677f9c441 |
SCIP notification number (Sweden) | d097a094-e2dd-4617-9c01-202e0473b2ef | Nominal input voltage U<sub>N</sub> | AC?230?V |
Input voltage range (low level) | AC?0 … 90?V | Input voltage range (high level) | AC?175 … 270?V |
Nominal input current at U<sub>N</sub> | 1?mA | Circuit type | 3-wire connection |
Limiting continuous current | 0.5?A | Nominal output voltage | DC?24?V |
Output voltage range | DC 20 … 30?V | Voltage drop | ≤ 1.2?VDC |
Leakage current at rated voltage | ≤?10?μA | Output closed-circuit current (without load) max. | 11mA |
Turn-on time | ≤?30?ms | Turn-off time | ≤?30?ms |
Status indicator | Red LED |
Specifications may be subject to change without notice
