Product Model

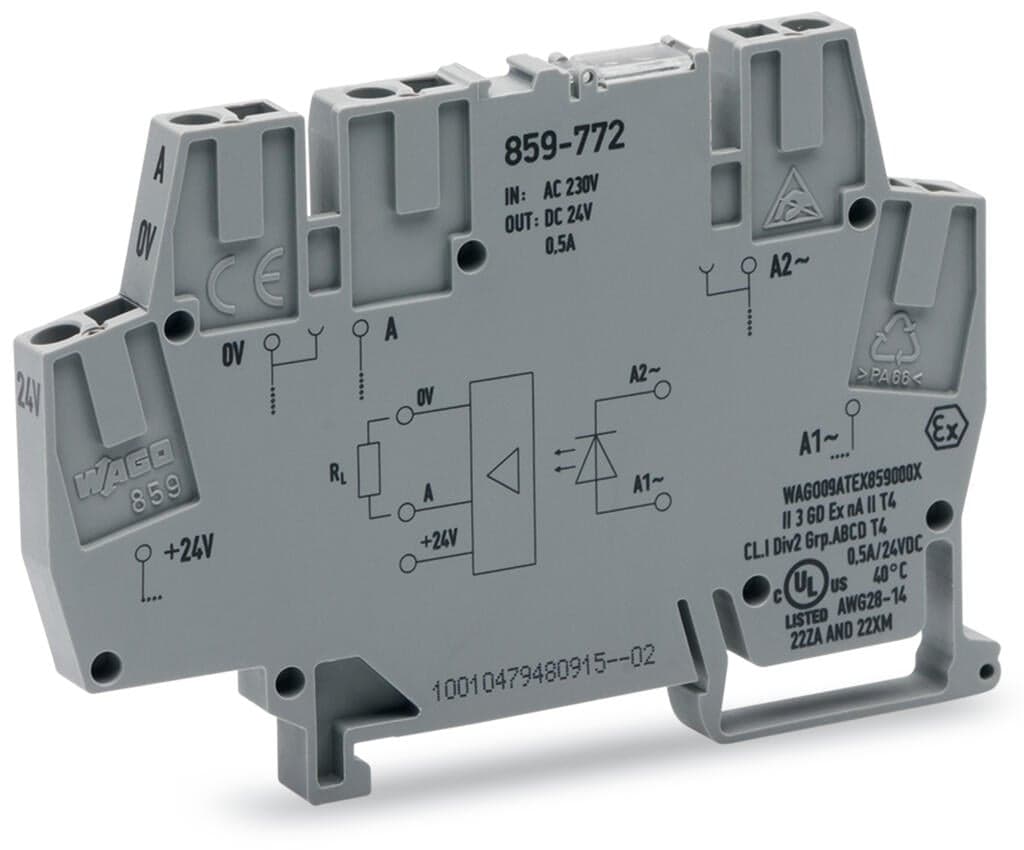

859-772
Selling Points
- 1Rated for 250 VDC and 4 kV surge voltage, ensuring reliable operation in demanding environments.
- 2Push-in CAGE CLAMP technology provides quick and secure connections without damaging conductors.
- 3Built to withstand harsh industrial conditions with a mechanical life of 5 x 10^6 switching operations.
- 4Suitable for a wide range of applications, including DIN rail mounting, making it easy to integrate into various systems.
- 5Meets IP20 protection standards and includes a yellow LED status indicator for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Type of circuits | Mains circuits | Overvoltage category | II |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 3?kVrms |
Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) | Insulation type (to adjacent devices of different types) | Basic insulation |
Protection type | IP20; in connected state or when using 859-525 end plate | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Width | 6?mm?/ 0.236?inches | Height | 91?mm?/ 3.583?inches |
Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches | Mounting type | DIN-35 rail |
Mounting position | horizontal (standing/lying); vertical | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Material group | I | Flammability class per UL94 | V0 |
Fire load | 0.338MJ | Weight | 20.4g |
Ambient temperature (operation at U<sub>N</sub>) | -25 … +55 °C | Ambient temperature UL (operation at U<sub>N</sub>) | -25 … +40 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4055144130225 |
Customs tariff number | 8541500080 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 7b7a0727-9ea7-4d73-bb6c-9ebcf112cf1e |
SCIP notification number (Belgium) | 30368bae-c60d-495e-8a38-b2dba867a2a9 | SCIP notification number (Bulgaria) | 9e510fa9-994e-4d30-8c64-41e168fc56df |
SCIP notification number (Czech Republic) | f0459634-ef2c-496c-b525-7fcd01b3f5e8 | SCIP notification number (Denmark) | 81836dd0-3719-4065-8ed4-1b597e7198fb |
SCIP notification number (Finland) | 55c92654-b2a0-4174-86b1-b4b9962bf57f | SCIP notification number (France) | 3115ce03-7a1e-4b16-ba43-e44e0271f6ea |
SCIP notification number (Germany) | fc45cbf7-4f81-46f1-9fd5-c05e1c2e7dac | SCIP notification number (Hungary) | 83be52ec-7c2c-42db-9e49-d21d292ace72 |
SCIP notification number (Italy) | ee6539e6-8425-4697-a652-0cece00eed03 | SCIP notification number (Netherlands) | 89f8de47-ce49-4608-9764-7b7036154955 |
SCIP notification number (Poland) | 5f490b96-2513-435a-8d9e-f06517e9f229 | SCIP notification number (Romania) | e52d0375-0ff2-469b-88cd-8d0527781e56 |
SCIP notification number (Sweden) | 4a224bbd-7ec5-40a8-afde-3cd169ef9249 | Nominal input voltage U<sub>N</sub> | AC?230?V |
Input voltage range (low level) | AC?0 … 90?V | Input voltage range (high level) | AC?175 … 270?V |
Nominal input current at U<sub>N</sub> | 1?mA | Circuit type | 3-wire connection |
Limiting continuous current | 0.5?A | Nominal output voltage | DC?24?V |
Output voltage range | DC 20 … 30?V | Voltage drop | ≤ 1.2?VDC |
Leakage current at rated voltage | ≤?10?μA | Output closed-circuit current (without load) max. | 12mA |
Turn-on time | ≤?30?ms | Turn-off time | ≤?30?ms |
Status indicator | Red LED |
Specifications may be subject to change without notice
