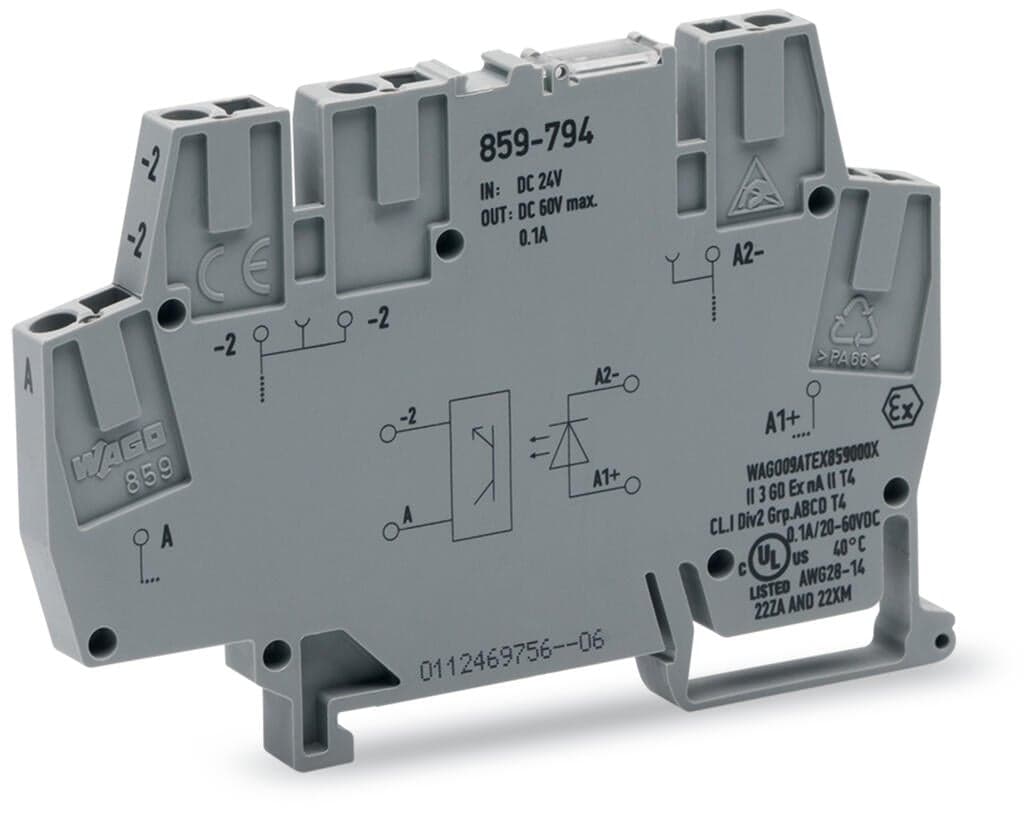

Product Model
859-794
Selling Points
- 1Reliable Signal Processing: Designed for use in signal processing networks, ensuring precise control.
- 2Railway Application: Specifically designed for railway applications, meeting stringent safety standards.
- 3Red LED Indicator: Features a red LED status indicator for easy monitoring.
- 42-Wire Connection: Offers a simple 2-wire connection for easy integration.
- 5DIN Rail Mounting: Compatible with DIN rail mounting, facilitating easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms | Insulation type (control/load circuit) | Basic insulation |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
Insulation type (to adjacent devices of different types) | Basic insulation | Protection type | IP20; in connected state or when using 859-525 end plate |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Mounting type | DIN-35 rail | Mounting position | horizontal (standing/lying); vertical |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.338MJ |
Weight | 17.7g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | Box |
Country of origin | CN | GTIN | 4066966278989 |
Customs tariff number | 8541500080 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 97e20fec-7ef8-4308-9df4-b9beadf1ef91 |
SCIP notification number (Belgium) | afaadc22-038e-4c5d-ac39-69df25e85c26 | SCIP notification number (Bulgaria) | 93632ac1-b492-4946-9ed7-377e0daaed60 |
SCIP notification number (Czech Republic) | b9cd1975-f211-470e-b780-095c63e5f498 | SCIP notification number (Denmark) | dee75a1a-c78d-4336-b2de-81d6bff7d37a |
SCIP notification number (Finland) | f2bcdbd1-947a-4580-b997-80bd91b96611 | SCIP notification number (France) | efa2c40b-aac0-4647-8b02-79ce02e41cee |
SCIP notification number (Germany) | cc674ec4-4da2-402f-872f-414caffff011 | SCIP notification number (Hungary) | ba812f41-53db-45a6-b453-93d6ef534a9b |
SCIP notification number (Italy) | e7f6eb14-bc4e-46df-b8d3-7fbebba411b7 | SCIP notification number (Netherlands) | 81e30e1d-6dcd-47c8-a3c3-d049af7b1761 |
SCIP notification number (Poland) | 02b6ce32-a5c5-4957-be86-6b44c3b6f522 | SCIP notification number (Romania) | 15bbf093-9f9b-4fb4-be0c-e91eb4f3f17f |
SCIP notification number (Sweden) | 9a68c8aa-c768-4c87-a1ea-e685293e288d | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range (low level) | DC?0 … 5?V | Input voltage range (high level) | DC?16 … 30?V |
Nominal input current at U<sub>N</sub> | 5?mA | Circuit type | 2-wire connection |
Limiting continuous current | 0.1?A | Output voltage range | DC 9 … 60?V |
Voltage drop | ≤ 2?VDC | Leakage current at rated voltage | ≤?25?μA |
Turn-on time | ≤?20?μs | Turn-off time | ≤?120?μs |
Switching frequency | ≤?1.5?kHz | Status indicator | Red LED |
