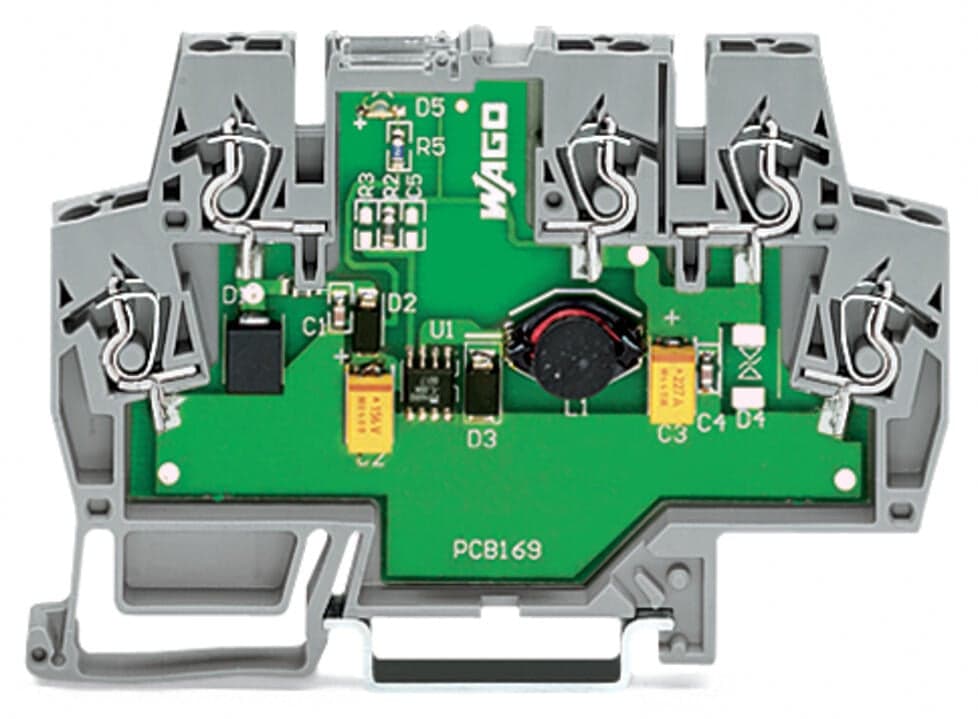

Product Model
859-801
Selling Points
- 1Compact Design: 0.236 in W x 3.583 in D, perfect for DIN Rail mounting.
- 2Efficient Conversion: 70% efficiency at full load, ensuring reliable power supply.
- 3High Accuracy: 0.5% maximum load regulation and 2% maximum line regulation.
- 4Versatile Connectivity: Cage Clamp connection technology for secure wiring.
- 5Durable Construction: IP20 protection class and reverse voltage protection for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection class | III | Protection type | IP20; per EN 60529 |
Reverse voltage protection | yes | Pollution degree | 2 |
Series operation | No | Number of jumper slots | 2 |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 859 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Housing design | Rail-mount terminal block | Mounting type | DIN-35 rail |
Color | gray | Fire load | 0.48MJ |
Weight | 20g | Ambient temperature (operation) | 0 … +40 °C |
Conformity marking | CE | eCl@ss 10.0 | 27-04-07-01 |
eCl@ss 9.0 | 27-04-07-01 | ETIM 9.0 | EC002540 |
ETIM 8.0 | EC002540 | ECCN | EAR99 |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | US | GTIN | 4050821021568 |
Customs tariff number | 8504409510 | RoHS Compliance Status | Compliant,No Exemption |
Nominal input voltage [V] | DC?24?V | Input voltage range | DC?10 … 30?V |
Nominal mains frequency range | 0?Hz | Mains failure hold-up time | ≥?1?ms |
Nominal output voltage [V] | DC?5?V | Output voltage range | DC?5?V |
Nominal output current I<sub>o nom</sub> | 0.5?A (Single, 10 mm spacing);?0.4?A (in a row) | Residual ripple | ≤?150?mV |
Switching frequency | 20?kHz (nominal) | Overload behavior | Temporary no damage (short circuit of the output for 1 minute) |
Signaling | 1 x LED | Efficiency (typ.) | 70?% |
Internal fuse | TVS diode |
Specifications may be subject to change without notice
