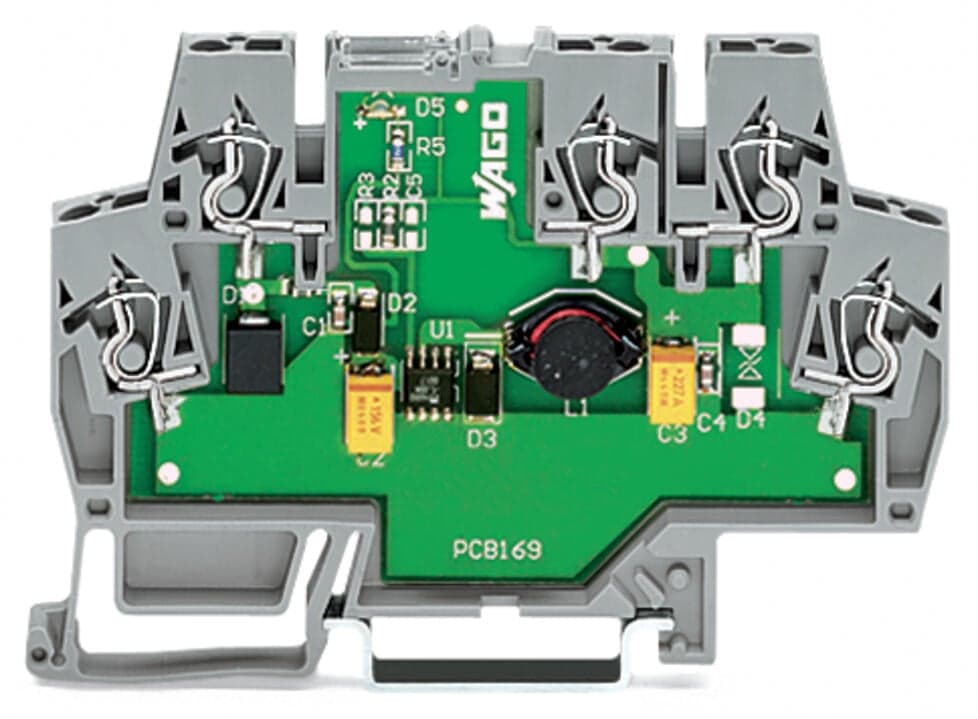

Product Model
859-804
Selling Points
- 1Compact design with DIN-35 rail mounting for easy installation.
- 2High efficiency with an output voltage regulation of ±1%.
- 3Robust protection including reverse voltage protection and internal fuse.
- 4Suitable for wire sizes from 0.08mm² to 2.5mm² or #28AWG to #14AWG.
- 5Reliable operation with a switching frequency of 1.2 MHz and low residual ripple.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection class | III | Protection type | IP20; per EN 60529 |
Reverse voltage protection | yes | Pollution degree | 2 |
Series operation | No | Number of jumper slots | 2 |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 859 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Housing design | Rail-mount terminal block | Mounting type | DIN-35 rail |
Color | gray | Fire load | 0.48MJ |
Weight | 35.1g | Ambient temperature (operation) | -25 … +55 °C |
Conformity marking | CE | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
ECCN | EAR99 | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | US |
GTIN | 4050821017479 | Customs tariff number | 8504409510 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage [V] | DC?12?V |
Input voltage range | DC?8 … 16?V | Nominal mains frequency range | 0?Hz |
Mains failure hold-up time | ≥?0.5?ms | Nominal output voltage [V] | DC?24?V |
Output voltage range | DC?24?V | Nominal output current I<sub>o nom</sub> | 0.25?A |
Residual ripple | ≤?40?mV | Switching frequency | 1.2?MHz (nominal) |
Overload behavior | Fuse | Signaling | 1 x LED |
Efficiency (typ.) | 83?% | Internal fuse | TVS diode |
