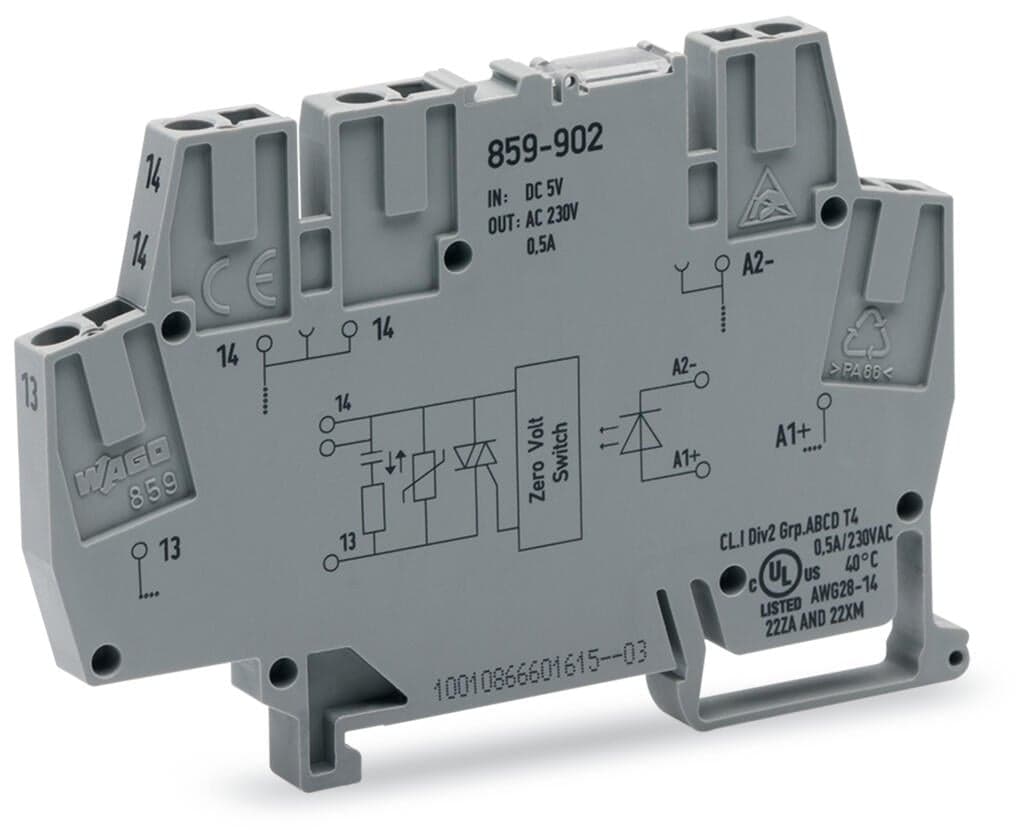

Product Model
859-902
Selling Points
- 1Ensures reliable operation with zero-cross switching technology.
- 2Supports a wide output voltage range of 24-260VAC.
- 3Measuring 6mm in width, perfect for DIN-35 rail mounting.
- 4Handles continuous current up to 0.5A and peak output current of 30A.
- 5Features a red LED status indicator for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Type of circuits | Mains circuits | Overvoltage category | III |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 3.51?kVrms |
Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) | Insulation type (to adjacent devices of different types) | Reinforced insulation (safe isolation) |
Protection type | IP20; in connected state or when using 859-525 end plate | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Width | 6?mm?/ 0.236?inches | Height | 91?mm?/ 3.583?inches |
Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches | Mounting type | DIN-35 rail |
Mounting position | horizontal (standing/lying); vertical | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.338MJ |
Weight | 20.4g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +55 °C |
Ambient temperature UL (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-26-15-03 | eCl@ss 9.0 | 27-26-15-03 |
ETIM 9.0 | EC001504 | ETIM 8.0 | EC001504 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143606738 | Customs tariff number | 8541500080 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 9ac7fc48-a2ac-4908-906f-2b8cd4b37ec8 | SCIP notification number (Belgium) | ef044561-9023-42f7-abe1-35525f06aaac |
SCIP notification number (Bulgaria) | b5fdb4d2-f21a-445d-8e1d-72344877b87b | SCIP notification number (Czech Republic) | 4f6d81b3-e526-44bc-a071-f41fdefb2f08 |
SCIP notification number (Denmark) | 67840c7d-a36a-49f1-9ca7-921349e558da | SCIP notification number (Finland) | 0b93c8a8-a04e-4fbb-b95c-d4ac7eea764d |
SCIP notification number (France) | 03814446-4c00-41e7-ace8-a9e1aa4b1564 | SCIP notification number (Germany) | a807a295-6019-4843-afd7-c34c4dbc4c9c |
SCIP notification number (Hungary) | 68ad8a15-753f-456e-87b2-b80a946a1d1d | SCIP notification number (Italy) | 07c64cbd-2e81-4fa8-abe1-da620760db84 |
SCIP notification number (Netherlands) | c650d6ea-8f2f-44a0-911d-e4c8a83fa040 | SCIP notification number (Poland) | 9337548c-3ccd-432b-9012-36dd5a19cb19 |
SCIP notification number (Romania) | 54c2b9f2-9a0f-4cf6-92a8-a7a1b24f8dd8 | SCIP notification number (Sweden) | 5ad19771-83e3-4202-bcc0-d3bc81ca261e |
Nominal input voltage U<sub>N</sub> | DC?5?V | Input voltage range (low level) | DC?0 … 1?V |
Input voltage range (high level) | DC?4 … 6.25?V | Nominal input current at U<sub>N</sub> | 8?mA |
Circuit type | 2-wire connection | Limiting continuous current | 0.5?A |
Peak output current | 30A | Nominal output voltage | AC?230?V |
Output voltage range | AC 24 … 260?V?(50 … 60 Hz) | Voltage drop | ≤ 1.2?VAC |
Leakage current at rated voltage | ≤?1?mA | Switching current (min.) | 50?mA |
Turn-on time | ≤?10?ms | Turn-off time | ≤?10?ms |
Switching frequency | 50?Hz?/ 60?Hz | Status indicator | Red LED |
