wagoRail Chassis Terminal Blocks
Product Model

862-1533

Manufacturer

wago

Category

Rail Chassis Terminal Blocks

Product ID

42394

In Stock
Last updated: 2025/4/18
View Specifications

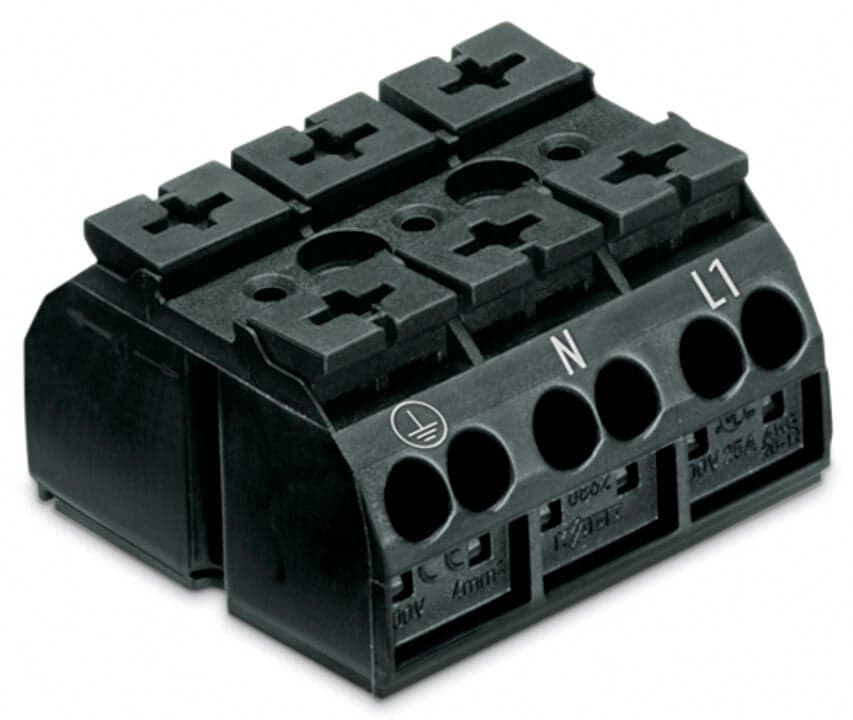

wago 862-1533

Selling Points

  • 1Efficient Wiring Solution: Connects up to four conductors (0.5 to 4 mm²) with push-in CAGE CLAMP technology.
  • 2Flexible Mounting: Suitable for DIN rail or surface mounting with snap-in feet.
  • 3High Current Rating: Supports a rated current of 32 A, making it suitable for demanding applications.
  • 4RoHS Compliant: Meets environmental standards, ensuring compliance with RoHS regulations.
  • 5Easy Installation: Features push-buttons and built-in test points for simplified installation and testing.
Product Details
862-1533
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
12
Total number of potentials
3
PE function
without PE contact
Pin spacing
12?mm?/ 0.472?inches
Width
36?mm?/ 1.417?inches
Height from the surface
22.3?mm?/ 0.878?inches
Depth
35?mm?/ 1.378?inches
Marking
?-N-L1
Mounting type
Chassis-mount
Note (material data)
Information on material specifications can be found here
Color
black
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.44MJ
Halogen-free
Yes
Weight
20.8g
eCl@ss 10.0
27-14-11-06
eCl@ss 9.0
27-14-11-06
ETIM 9.0
EC001284
ETIM 8.0
EC001284
ECCN
NO US CLASSIFICATION
PU (SPU)
250?pcs
Packaging type
bag
Country of origin
DE
GTIN
4044918509541
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Rated voltage (III / 3)
500V
Rated impulse voltage (III / 3)
6kV
Rated current
32A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Connection technology
Push-in CAGE CLAMP?
Actuation type
Push-button
Connectable conductor materials
Copper
Solid conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Solid conductor; push-in termination
0.75 … 4?mm2?/ 18 … 12?AWG
Stranded conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Fine-stranded conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 1.5?mm2?/ 20 … 16?AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75?mm2?/ 18?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
10 … 11?mm?/ 0.39 … 0.43?inches
Number of poles
3
Wiring direction
Side-entry wiring

Specifications may be subject to change without notice
