wagoRail Chassis Terminal Blocks
Product Model

862-1632/999-950

Manufacturer

wago

Category

Rail Chassis Terminal Blocks

Product ID

46663

In Stock
Last updated: 2025/4/20
View Specifications

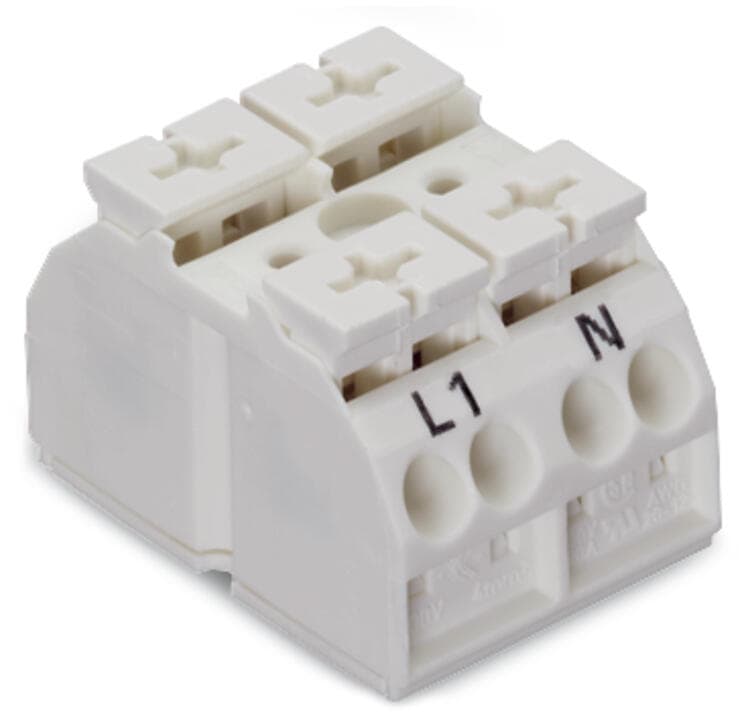

wago 862-1632/999-950

Selling Points

  • 1High-reliability connectors designed for demanding industrial environments.
  • 2Durable construction with robust materials for long-lasting performance.
  • 3Easy-to-use push-in technology simplifies connection and disconnection.
  • 4Compact design fits in tight spaces, ideal for space-constrained applications.
  • 5Compatible with a wide range of industrial devices and systems.
Product Details
862-1632/999-950
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
8
Total number of potentials
2
PE function
without PE contact
Pin spacing
12?mm?/ 0.472?inches
Width
24?mm?/ 0.945?inches
Height from the surface
22.3?mm?/ 0.878?inches
Depth
35?mm?/ 1.378?inches
Marking
L1-N
Mounting type
Chassis-mount
Note (material data)
Information on material specifications can be found here
Color
white
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.266MJ
Halogen-free
Yes
Weight
14.2g
eCl@ss 10.0
27-14-11-06
eCl@ss 9.0
27-14-11-06
ETIM 9.0
EC001284
ETIM 8.0
EC001284
ECCN
NO US CLASSIFICATION
PU (SPU)
500?pcs
Packaging type
bag
Country of origin
DE
GTIN
4045454803537
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Rated voltage EN (Ex e II)
440V
Rated current (Ex e II)
28A
Connection technology
Push-in CAGE CLAMP?
Actuation type
Push-button
Connectable conductor materials
Copper
Solid conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Solid conductor; push-in termination
0.75 … 4?mm2?/ 18 … 12?AWG
Stranded conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Fine-stranded conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 1.5?mm2?/ 20 … 16?AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75?mm2?/ 18?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
10 … 11?mm?/ 0.39 … 0.43?inches
Number of poles
2
Wiring direction
Side-entry wiring

Specifications may be subject to change without notice
