Product Model

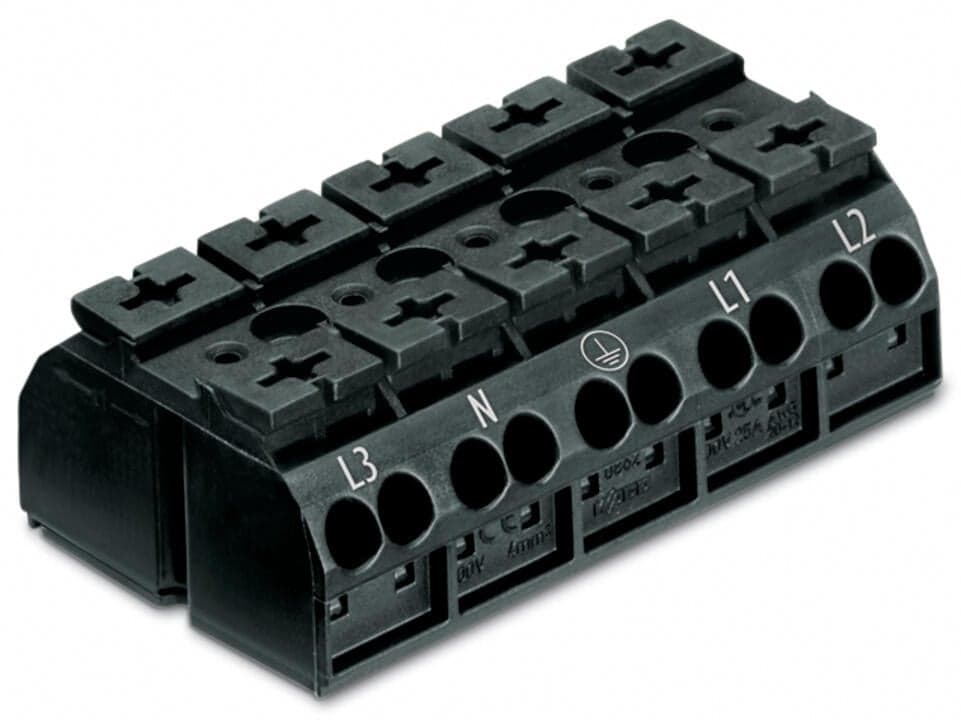

862-2525
Selling Points
- 1Push-in CAGE CLAMP for easy conductor insertion.
- 2Supports up to 32A with a maximum voltage of 500V.
- 3Snap-in mounting feet for fast and secure assembly.
- 4Connect up to four conductors per pole, accommodating different wire sizes.
- 5RoHS compliant, UL listed, and suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 20 | Total number of potentials | 5 |
PE function | without PE contact | Pin spacing | 12?mm?/ 0.472?inches |
Width | 60?mm?/ 2.362?inches | Height from the surface | 22.3?mm?/ 0.878?inches |
Depth | 35?mm?/ 1.378?inches | Marking | L3-N-?-L1-L2 |
Mounting type | Chassis-mount | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.661MJ | Halogen-free | Yes |
Weight | 35.3g | Product Group | 9 (Std Chassis Mt Blocks) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4044918509985 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 18?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches |
Number of poles | 5 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
