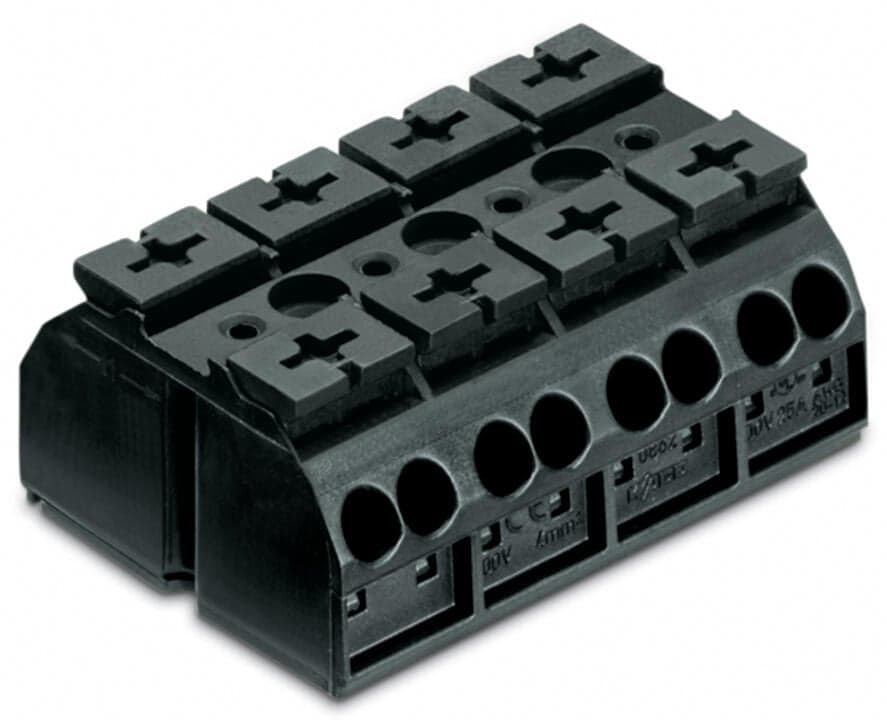

Product Model
862-534
Selling Points
- 1Effortless Connection: Push-in CAGE CLAMP technology for quick and secure conductor termination.
- 2Flexible Mounting: Accommodates flexible mounting requirements with snap-in feet.
- 3High Current Rating: Rated for 32 A, suitable for demanding applications.
- 4Halogen-Free: Compliant with RoHS, ensuring environmental safety.
- 5Easy Installation: Push-buttons and built-in test points simplify installation and testing processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 16 | Total number of potentials | 4 |
PE function | without PE contact | Pin spacing | 12?mm?/ 0.472?inches |
Width | 48?mm?/ 1.89?inches | Height from the surface | 22.3?mm?/ 0.878?inches |
Depth | 35?mm?/ 1.378?inches | Marking | plain |
Mounting type | Snap-in foot | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.52MJ | Halogen-free | Yes |
Weight | 28g | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4044918509121 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches | Number of poles | 4 |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
