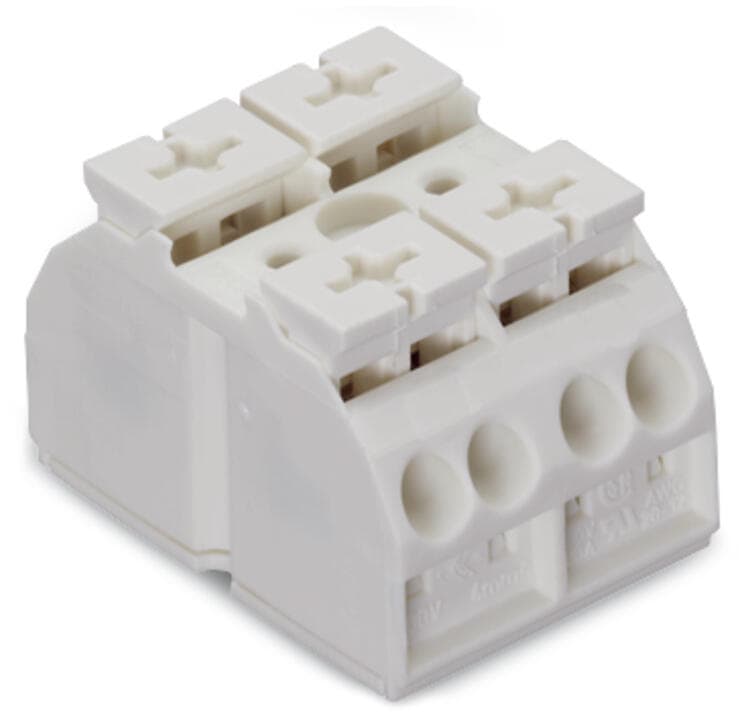

Product Model
862-662
Selling Points
- 1Efficient Electrical Connections: The WAGO 862-662 terminal block ensures reliable and efficient electrical connections with its push-in CAGE CLAMP connection.
- 2High Current Rating: Supports up to 32A, making it suitable for high-current applications.
- 3Versatile Mounting Options: Designed for chassis mounting, providing flexibility in installation.
- 4Easy Wiring Access: Side-entry wiring allows for easy access and management of electrical connections.
- 5Durable Construction: Built with high-quality materials for long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 8 | Total number of potentials | 2 |
PE function | without PE contact | Pin spacing | 12?mm?/ 0.472?inches |
Width | 24?mm?/ 0.945?inches | Height from the surface | 22.3?mm?/ 0.878?inches |
Depth | 35?mm?/ 1.378?inches | Marking | plain |
Mounting type | Chassis-mount | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.263MJ | Halogen-free | Yes |
Weight | 14.1g | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 500?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4044918509428 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches | Number of poles | 2 |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
