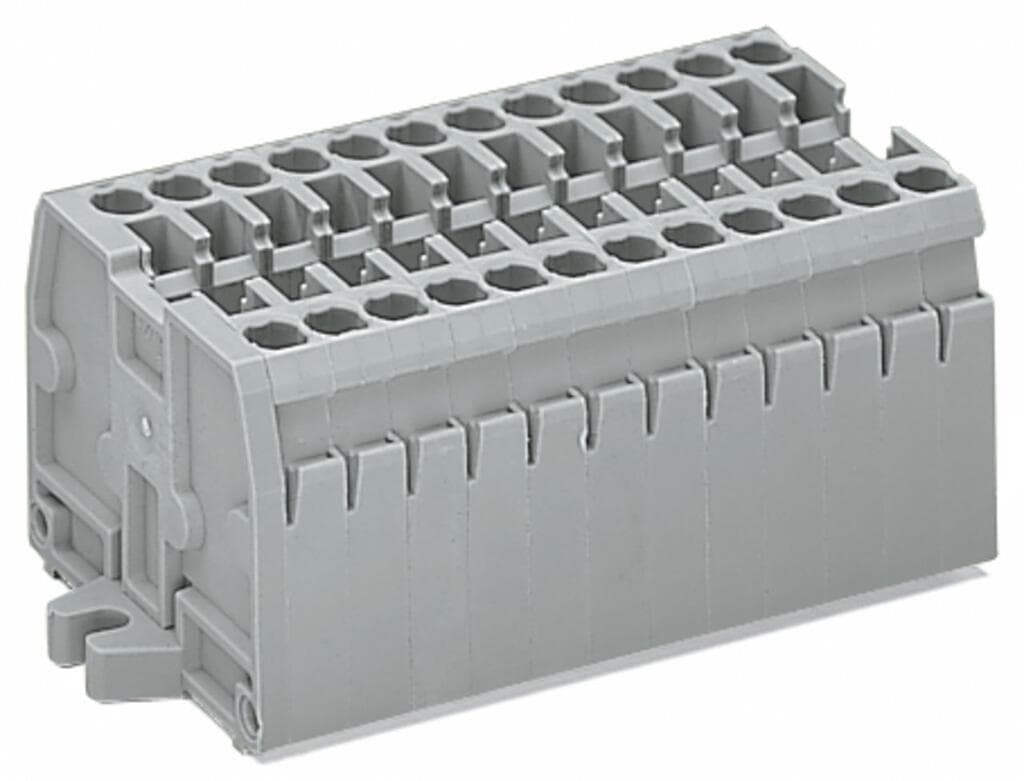

Product Model
869-212
Selling Points
- 1Compact design with 12 feed-through poles.
- 2Accommodates 24 wires with CAGE CLAMP spring connections.
- 3Supports wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 4Rated current of 24A for reliable performance.
- 5Easy mounting with a 4.2mm fixing hole.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 24 |
Total number of potentials | 12 | Number of levels | 1 |
Width | 74.5?mm?/ 2.933?inches | Height from the surface | 27.6?mm?/ 1.087?inches |
Depth | 33.4?mm?/ 1.315?inches | Module width | 5?mm?/ 0.197?inches |
Design | horizontal type | Mounting type | Mounting flange M4 |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.92MJ | Halogen-free | Yes |
Weight | 51.2g | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918481915 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Number of poles | 12 |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
