Product Model

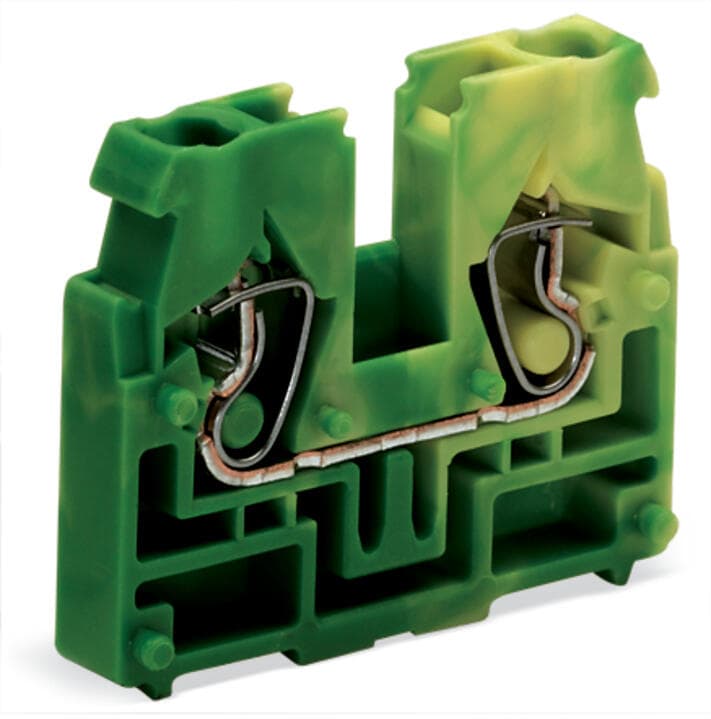

869-307
Selling Points
- 1Effortless Wire Connection: The WAGO 869-307 uses the patented CAGE CLAMP mechanism, which automatically connects solid or stranded wires without crimps, ferrules, or tinning.
- 2Versatile Wire Sizes: Accommodates wire sizes from 0.08 mm² to 35 mm², ensuring compatibility with various conductor cross sections.
- 3Proportional Clamping Force: The clamping force adjusts automatically to the conductor cross section, providing a secure connection.
- 4Screwless Design: Eliminates the need for screws, making installation faster and more efficient.
- 5High Retention Force: The uniquely curved current bar and flat clamping face ensure a high retention force, preventing loose connections and ensuring reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 2 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height from the surface | 27.6?mm?/ 1.087?inches |
Depth | 33.4?mm?/ 1.315?inches | Design | horizontal type |
Mounting type | Mounting flange M3 | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.076MJ |
Halogen-free | Yes | Weight | 4.2g |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918479943 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Wiring direction | Front-entry wiring |
