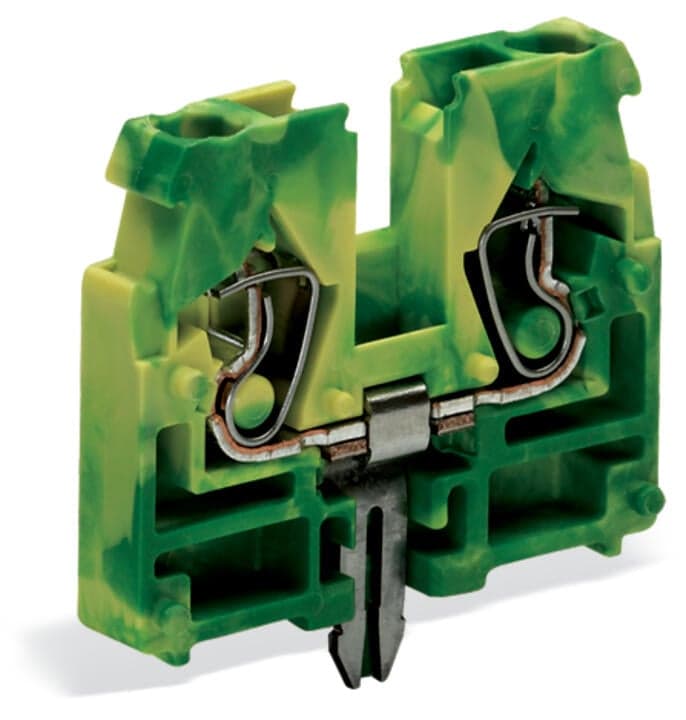

Product Model
869-328
Selling Points
- 1Secure Connections: Features CAGE CLAMP technology for fast, vibration-proof, and maintenance-free connections.
- 2Versatile Conductors: Compatible with solid and stranded conductors, including fine-stranded conductors with ferrules.
- 3High Safety Standards: Meets industrial standards with overvoltage category III and pollution degree 3.
- 4Easy Installation: Push-in termination simplifies conductor insertion without the need for tools.
- 5Durable Design: Constructed with high-quality materials, ensuring long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Safety information 2 | Notice: Terminal block cannot be commoned! |
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height from the surface | 27.6?mm?/ 1.087?inches | Depth | 33.4?mm?/ 1.315?inches |
Design | horizontal type | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.069MJ |
Halogen-free | Yes | Weight | 4.7g |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454549497 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
