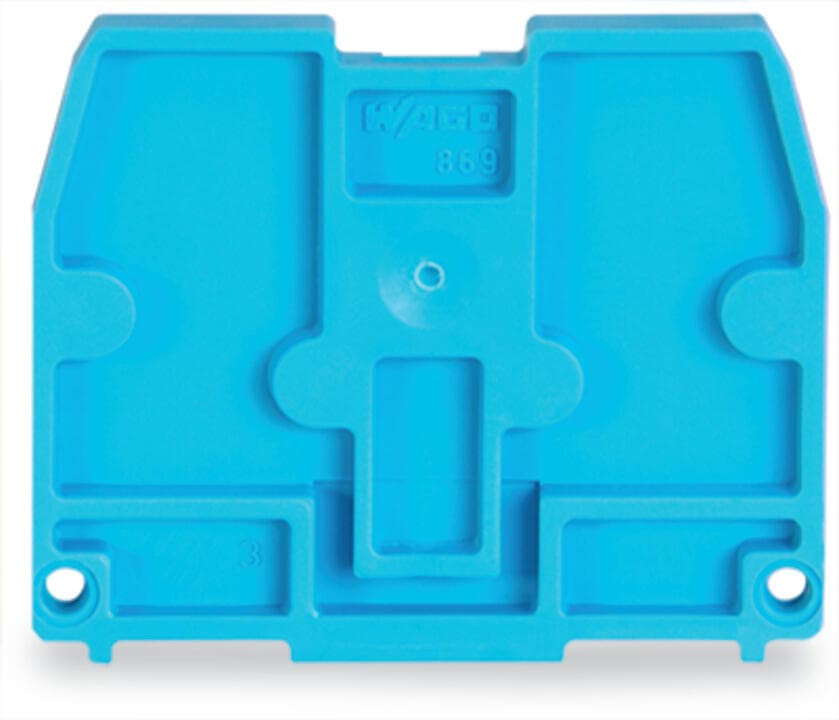

Product Model
869-378
Selling Points
- 1Made from 2.5 mm thick polyamide (PA66) for durability and insulation.
- 2Designed for easy installation with terminal blocks.
- 3Durable blue finish for easy identification.
- 4Meets high fire safety standards with a flammability class of V0.
- 5Measures 33.4 mm in depth, 27.6 mm in height, and 2.5 mm in width.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 27.6?mm?/ 1.087?inches |
Depth | 33.4?mm?/ 1.315?inches | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.047MJ | Weight | 1.6g |
Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332573634 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
