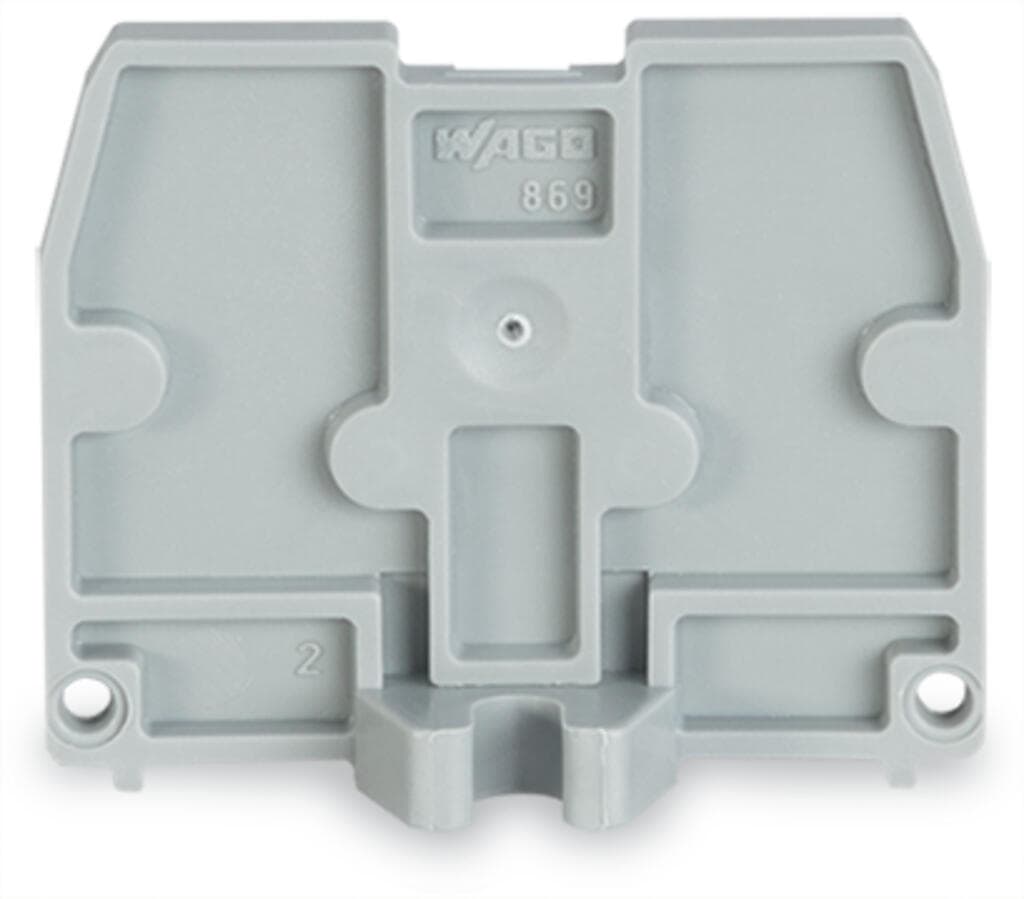

Product Model
869-385
Selling Points
- 1High-Quality Material: Made from durable polyamide (PA66) for excellent insulation and fire resistance.
- 2Compact Design: 2.5 mm thick and 33.4 mm deep, perfect for rail-mounted applications.
- 3Easy Installation: Includes a fixing flange M3 for secure mounting.
- 4Gray Color: Durable gray finish for long-lasting performance.
- 5Compliant with UL94 V0: Meets stringent flammability standards for safety in electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 27.6?mm?/ 1.087?inches |
Depth | 33.4?mm?/ 1.315?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.053MJ | Weight | 1.8g |
Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332612319 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
