Product Model

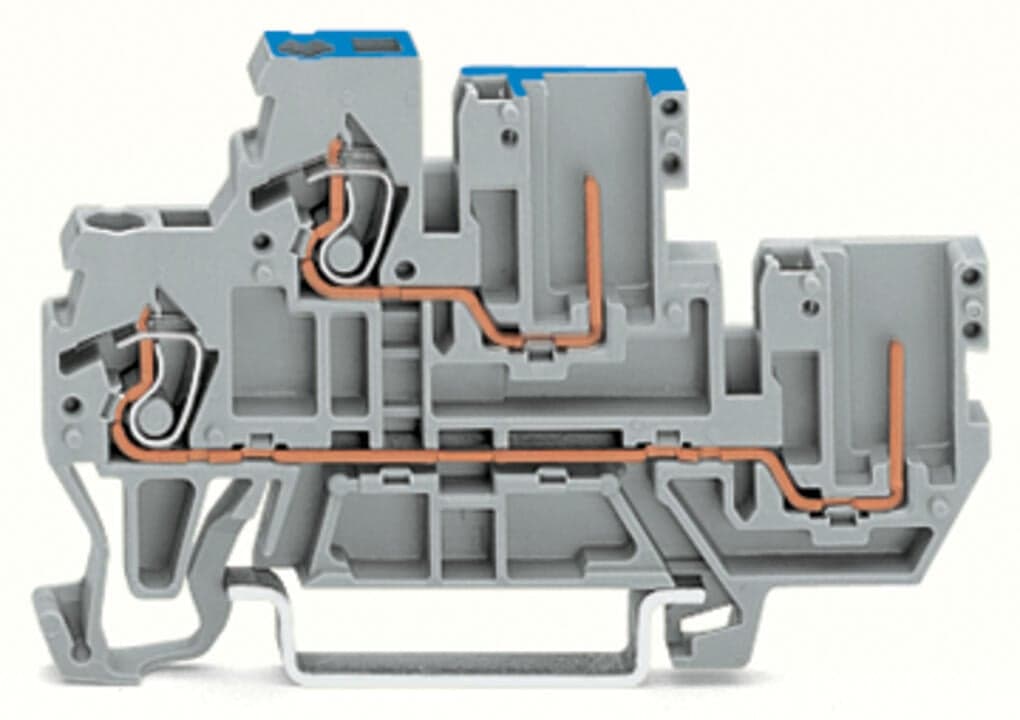

870-103
Selling Points
- 1Designed for DIN-rail mounting, the WAGO 870-103 simplifies your wiring needs.
- 2Built with robust CAGE CLAMP connections for secure and reliable connections.
- 3Suitable for Ex I applications and marked "N/N," making it versatile for various electrical setups.
- 4Supports up to 24A current, ensuring it can handle demanding electrical requirements.
- 5Features side marking slots for easy identification and installation on DIN-rail 35 x 15 and 35 x 7.5.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Safety information 2 | 2-conductor female plugs cannot be used. |
Clamping units | 2 | Total number of potentials | 2 |
Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
Height | 70?mm?/ 2.756?inches | Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches |
Potential Marking | L/N | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.163MJ |
Weight | 9.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454004460 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.341W | Rated current I<sub>N</sub> for specified power loss | 16A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
