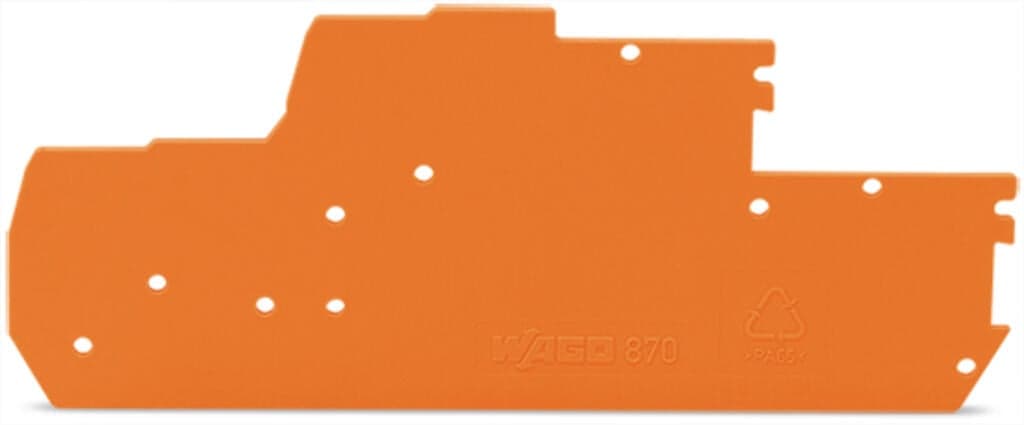

Product Model
870-1149
Selling Points
- 11 mm thick, high-quality material ensures long-lasting performance.
- 2Easy identification in complex electrical systems.
- 3Meets stringent fire safety standards.
- 41 mm width for efficient use in tight spaces.
- 5Suitable for end and intermediate connections in various electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143332699 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
