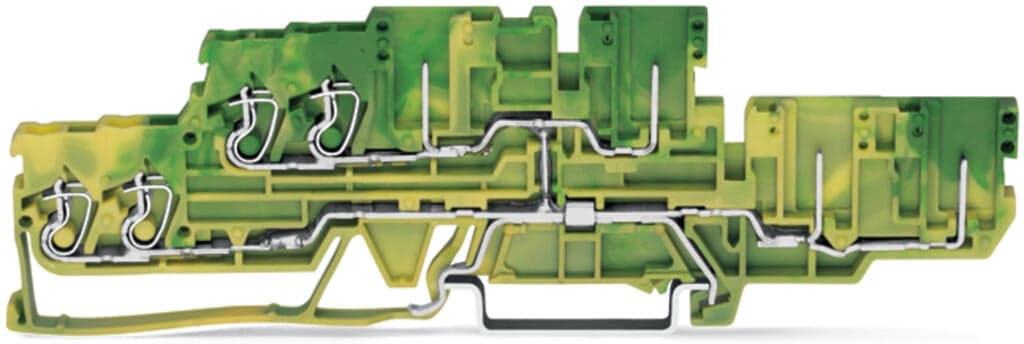

Product Model
870-137
Selling Points
- 1DIN-Rail Mounting Compatibility: Designed for DIN-rail 35 x 15 and 35 x 7.5 mm.
- 2Internal Commoning: Simplifies wiring with internal commoning.
- 3CAGE CLAMP Technology: Secure and reliable connection system.
- 4RoHS Compliant: Meets European Union's Restriction of Hazardous Substances (RoHS) standards.
- 5Versatile Wiring: Front-entry wiring with 4 total connection points and 1 potential.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Safety information 2 | 2-conductor female plugs cannot be used. |
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
Height | 132.7?mm?/ 5.224?inches | Depth from upper-edge of DIN-rail | 37.1?mm?/ 1.461?inches |
Potential Marking | PE | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.285MJ |
Weight | 20.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 40?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821353379 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
