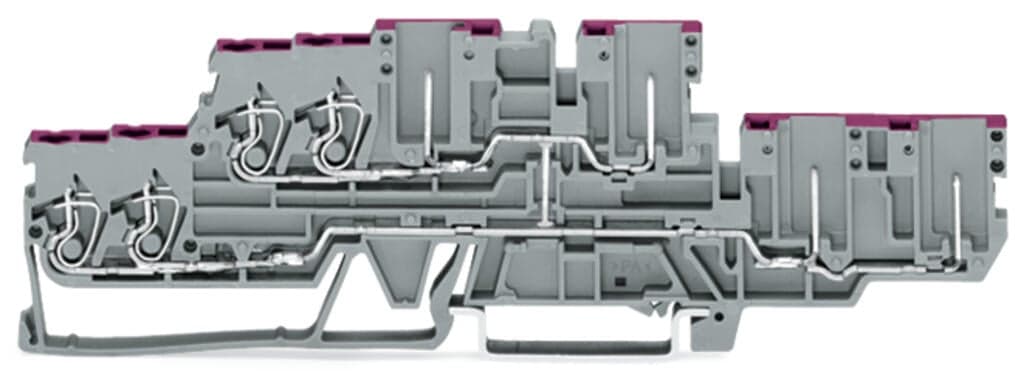

Product Model
870-138
Selling Points
- 1High Current Capacity: Supports up to 16A rated current.
- 2Versatile Wiring: Accommodates wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG).
- 3Durable Construction: Made of gray polyamide (PA66) for insulation and robust mechanical design.
- 4Efficient Mounting: Designed for easy mounting on DIN-35 rail (35 x 15 / 35 x 7.5).
- 5Reliable Connections: Utilizes CAGE CLAMP spring connections for secure and efficient wiring management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Safety information 2 | 2-conductor female plugs cannot be used. |
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
Height | 132.7?mm?/ 5.224?inches | Depth from upper-edge of DIN-rail | 37.1?mm?/ 1.461?inches |
Potential Marking | L | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.288MJ |
Weight | 19.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 40?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454912826 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.341W |
Rated current I<sub>N</sub> for specified power loss | 16A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
