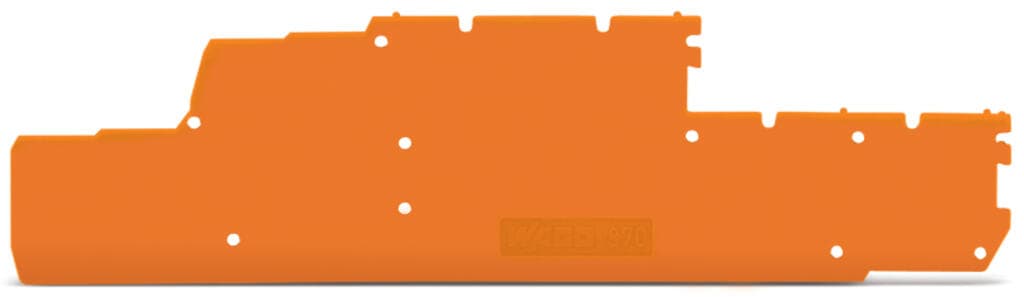

Product Model
870-148
Selling Points
- 1Withstands 22,200 A for 1 second at 120 A/mm², ensuring robust performance in demanding electrical environments.
- 2Provides gastight clamping units with measurable contact quality, ensuring reliable connections even under extreme conditions.
- 3Passes short-time current withstand tests without damage or reduced functionality, ensuring long-term reliability.
- 4Suitable for marine applications, industrial atmospheres, and various climatic tests including temperature cycling and salt spray tests.
- 5Push-in termination allows for quick and tool-free insertion of solid conductors, simplifying installation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 132.3?mm?/ 5.209?inches |
Depth | 37.7?mm?/ 1.484?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.125MJ | Weight | 4.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454600228 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
