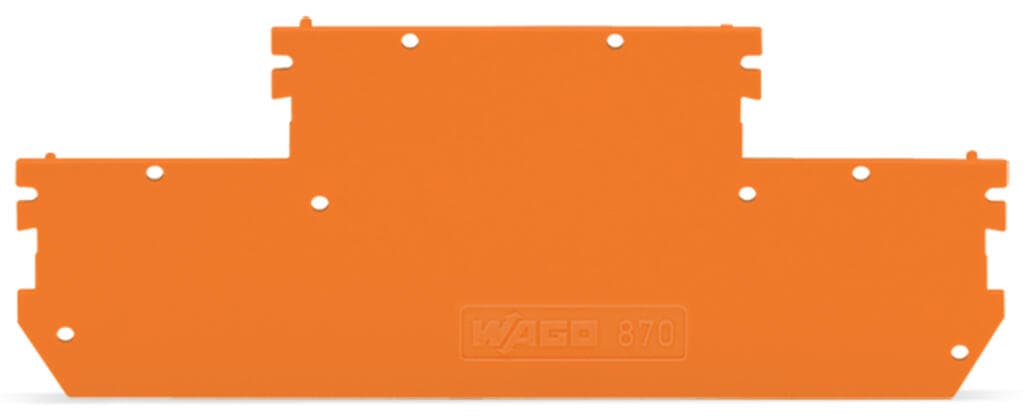

Product Model
870-169
Selling Points
- 1Made from high-quality materials for long-lasting performance.
- 2Easy to identify in industrial settings.
- 3Measures 37.1 mm in height, 88.6 mm in length, and 1 mm in width.
- 4Compatible with WAGO series 870 for seamless integration.
- 5Standard shipping days are 7 days, ensuring timely delivery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 88.6?mm?/ 3.488?inches |
Depth | 37.1?mm?/ 1.461?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.085MJ | Weight | 2.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454463021 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
