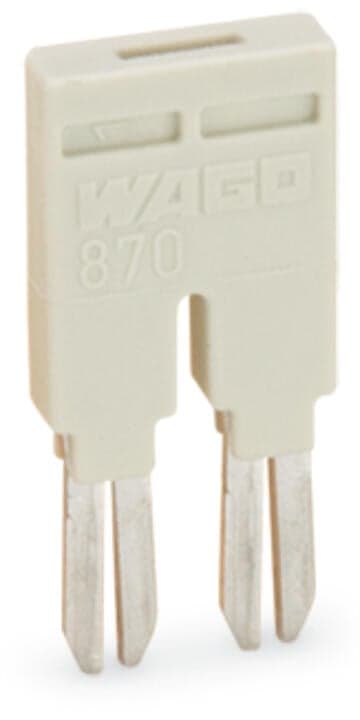

Product Model
870-402
Selling Points
- 1High Current Rating: Handles up to 18A of current.
- 2Insulated Design: Ensures safe and reliable electrical connections.
- 3Easy Installation: Push-in type connectors for quick and simple setup.
- 4Light Gray Color: Durable and easy-to-spot in industrial settings.
- 5Compact Size: Measures 9 mm in width and 2.5 mm in depth.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 9?mm?/ 0.354?inches | Height | 2.5?mm?/ 0.098?inches |
Jumper assignment | 1-2 | Note (material data) | Information on material specifications can be found here |
Color | light gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.01MJ |
Weight | 0.8g | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(25)?pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966272529 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 18A |
Rated current (Ex e II) | 13.5A |
Specifications may be subject to change without notice
