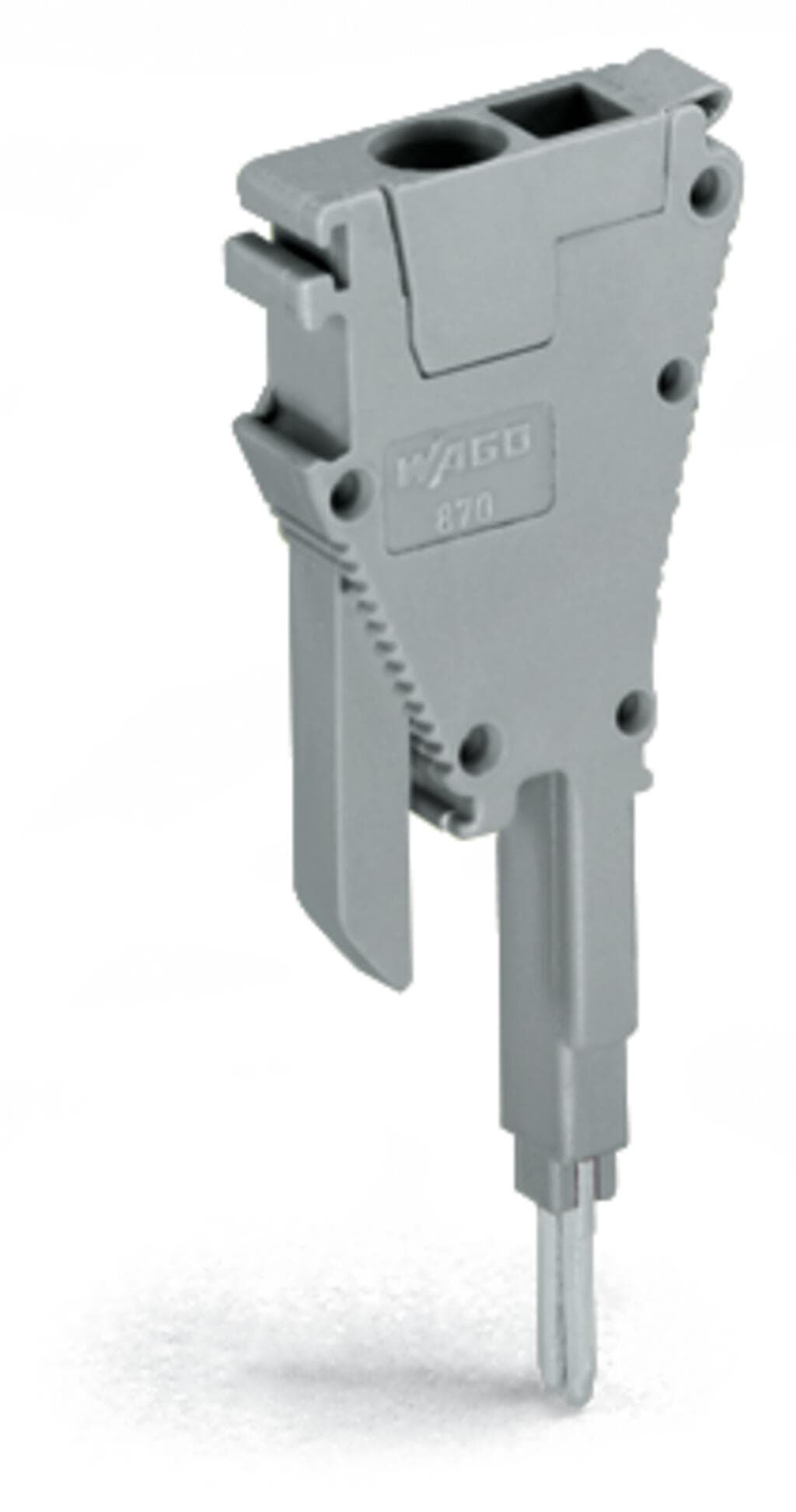

Product Model
870-425
Selling Points
- 1Durable design for harsh environments.
- 2Easy-to-use push-in technology.
- 3High current capacity up to 20 A.
- 4Compact size for space-saving installations.
- 5Wide range of compatible connectors available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Width | 5?mm?/ 0.197?inches | Module width | 5?mm?/ 0.197?inches |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.031MJ |
Weight | 1.8g | eCl@ss 10.0 | 27-14-11-51 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002021 |
ETIM 8.0 | EC002021 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454581053 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 10?mm?/ 0.39?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
