Product Model
870-503
Selling Points

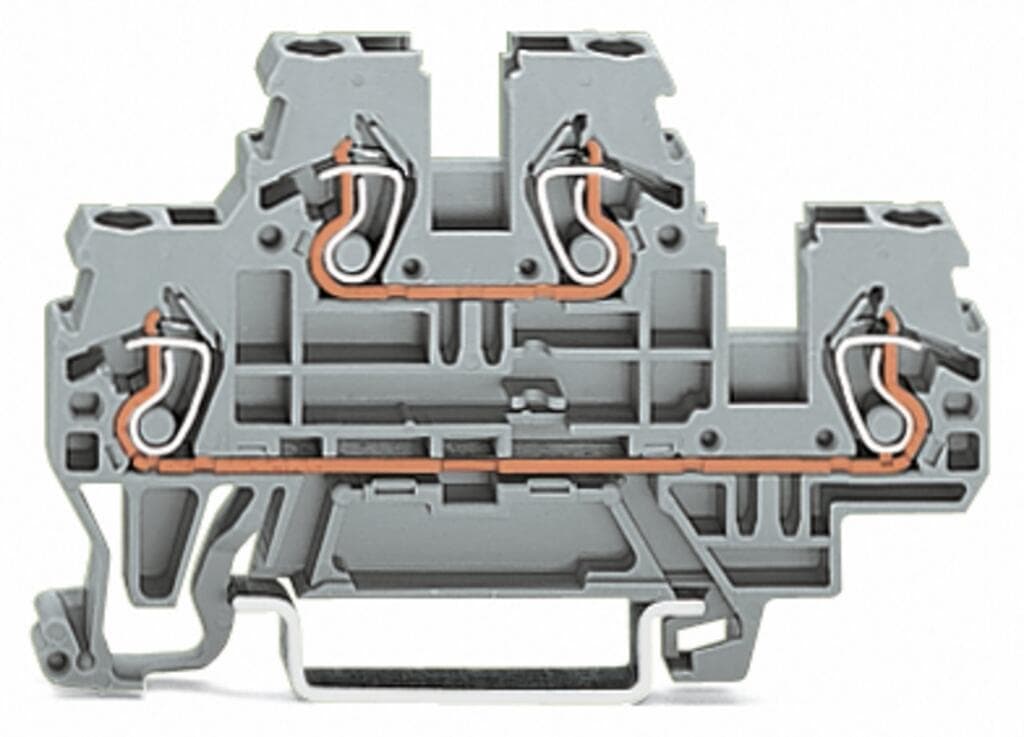

- 1High-Performance Connectivity: The WAGO 870-503 double-deck terminal block ensures fast, vibration-proof connections with its industry-proven spring pressure connection technology.
- 2Durable Design: Constructed with a robust gray color, this terminal block withstands harsh environments and meets high safety standards with a fire load of 0.169 MJ.
- 3Versatile Mounting: Designed for DIN-35 rail mounting, the WAGO 870-503 is ideal for various industrial applications, including those requiring 35 x 15 and 35 x 7.5 rail configurations.
- 4Efficient Wiring: With front-entry wiring and a total of four connection points, this terminal block simplifies wiring processes and reduces installation time.
- 5Comprehensive Certifications: The WAGO 870-503 meets stringent safety standards, including certifications from ABS, DEKRA, DNV GL, and UL International Germany GmbH.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 4 |
Total number of potentials | 2 | Number of levels | 2 |
Width | 5?mm?/ 0.197?inches | Height | 70?mm?/ 2.756?inches |
Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches | Potential Marking | L/N |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.169MJ | Weight | 10.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918630894 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
