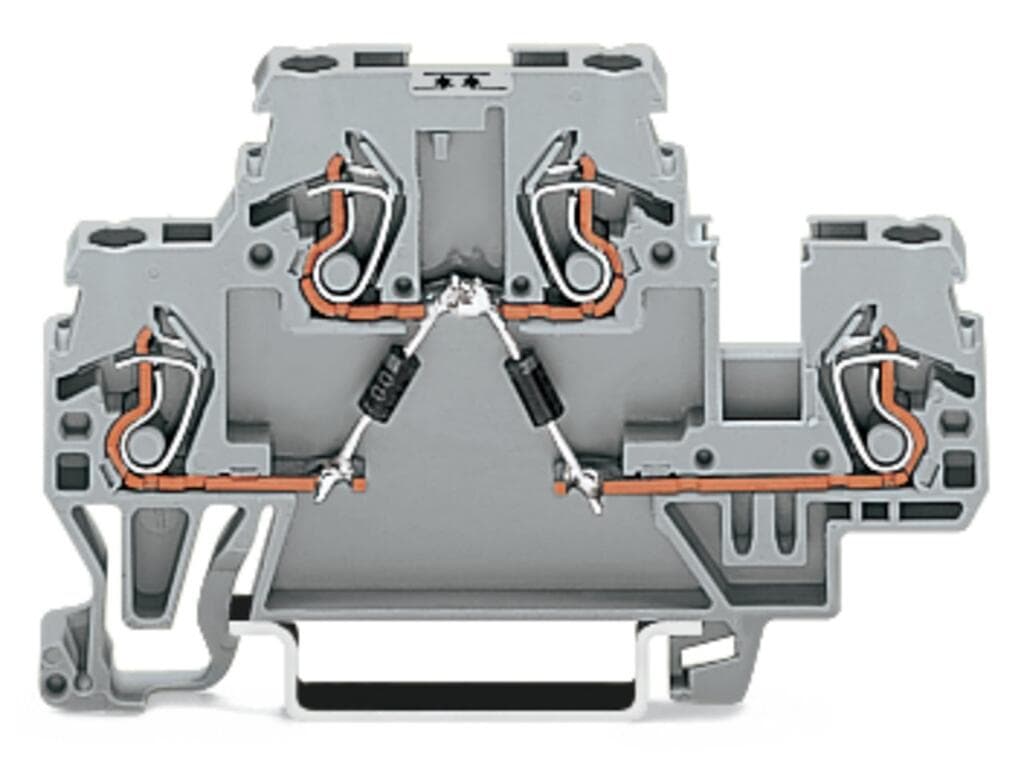

Product Model
870-541/281-489
Selling Points
- 1CAGE CLAMP Technology: Secure and reliable wire connections.
- 2DIN-35 Rail Compatibility: Easy mounting on standard DIN rails.
- 3Robust Wire Size Range: Accommodates wires from 0.08mm² to 4mm².
- 4Double-Deck Design: Increased connection points for complex wiring.
- 52-Year Warranty: Ensures long-term reliability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 4 |
Total number of potentials | 1 | Number of levels | 2 |
Width | 5?mm?/ 0.197?inches | Height | 70?mm?/ 2.756?inches |
Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.192MJ |
Weight | 9.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198602 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | ae0566cc-d8f6-470b-8904-50c4718dfe6f | SCIP notification number (Belgium) | e5f3be77-3c73-4cff-9e97-6f650e8e55ca |
SCIP notification number (Bulgaria) | 59bba4c6-fc13-4c26-8ea3-fe0c942f9905 | SCIP notification number (Czech Republic) | e8fb63e2-0cb6-4173-836a-36a67c3ae8aa |
SCIP notification number (Denmark) | ccd04cfe-e001-485e-8208-d3dc9ae371e2 | SCIP notification number (Finland) | 4abe59ec-7b0c-4b8e-912c-e128ae33b494 |
SCIP notification number (France) | e2d768de-8ea4-46ea-bbdf-eec5d66cff89 | SCIP notification number (Germany) | 6d6047ed-a6a0-47c6-ab7f-6128f4584cc9 |
SCIP notification number (Hungary) | 985a2b5b-5b97-4954-8cf5-745d162e4556 | SCIP notification number (Italy) | 348fe411-55d4-47f2-a174-d5cb06dc2655 |
SCIP notification number (Netherlands) | 99f40b61-a9a5-4f60-830e-9f0440d8524f | SCIP notification number (Poland) | 2e32a055-0fcc-4a45-b2b8-5014403d166a |
SCIP notification number (Romania) | 5b3352e5-d6ff-48f1-9ad9-aa18b2d2fada | SCIP notification number (Sweden) | cd6e4fed-f1da-46cc-ba86-757d29bf5702 |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
