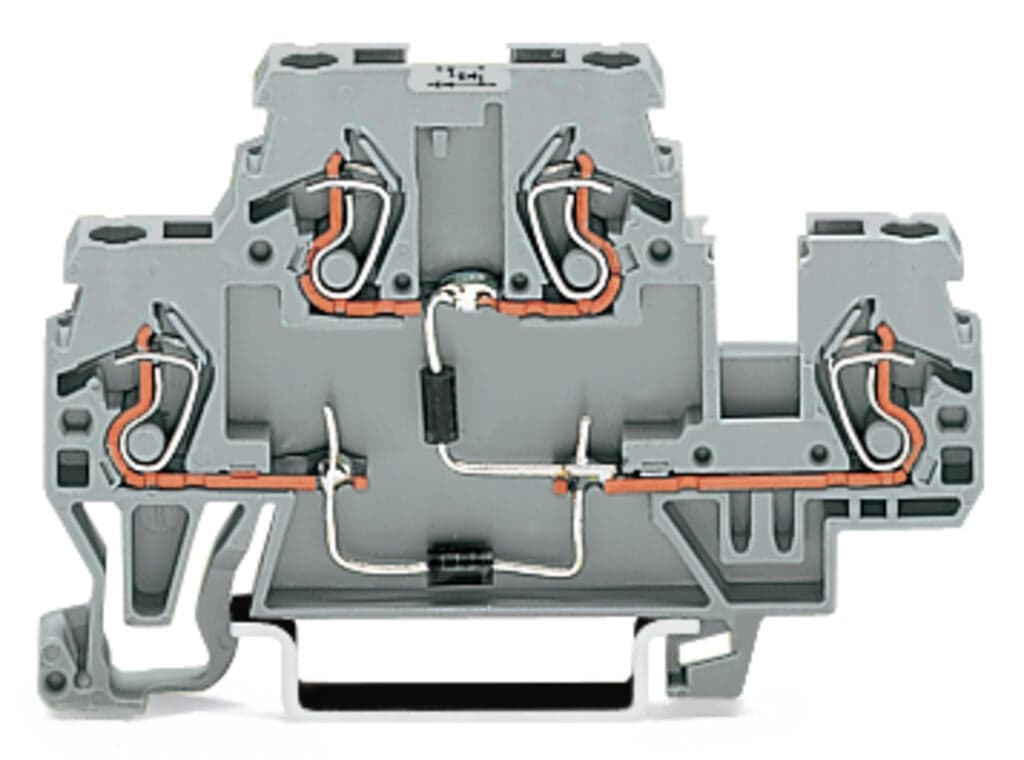

Product Model
870-541/281-491
Selling Points
- 1Built with robust CAGE CLAMP spring connections for secure wire management.
- 2Accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 3Designed for mounting on DIN-rail 35 x 15 and 35 x 7.5, ensuring easy installation.
- 4Equipped with two 1N4007 diodes for reliable electrical protection.
- 5Gray color terminal block for clear visibility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 4 |
Total number of potentials | 1 | Number of levels | 2 |
Width | 5?mm?/ 0.197?inches | Height | 70?mm?/ 2.756?inches |
Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.192MJ |
Weight | 9.4g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198626 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | d7aa464d-6f68-4ffa-a04d-525be742a419 | SCIP notification number (Belgium) | e213ab4b-908b-4f81-930f-65de789efeb0 |
SCIP notification number (Bulgaria) | aaf619be-ad95-4eda-b08a-b2d0ef47b9bc | SCIP notification number (Czech Republic) | 284fd504-16b4-48ca-bb2d-075fa67c4c18 |
SCIP notification number (Denmark) | ac362f82-4333-41be-b643-15c5346bb3f2 | SCIP notification number (Finland) | cc5b9ca8-7245-4c23-b296-2e723a83fc2f |
SCIP notification number (France) | 54777ce0-7595-4e4b-ab9b-de1f150db3cc | SCIP notification number (Germany) | 7b5af52c-8967-401a-8f00-2280d62e6c7b |
SCIP notification number (Hungary) | 2dff7c17-90a6-4fc8-814d-aca62b1a4c78 | SCIP notification number (Italy) | fa88923d-cab5-4c40-8053-7e15ce58a8c4 |
SCIP notification number (Netherlands) | d20a2a24-52fb-46f1-bc58-043ec4e93c6b | SCIP notification number (Poland) | 6b4b105c-6537-40a2-91a6-9b95a06f47b4 |
SCIP notification number (Romania) | b9ec7038-de30-49a9-a78c-8f10d2ab948a | SCIP notification number (Sweden) | 987fbee2-890a-4465-995c-56e90fefc6b3 |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
