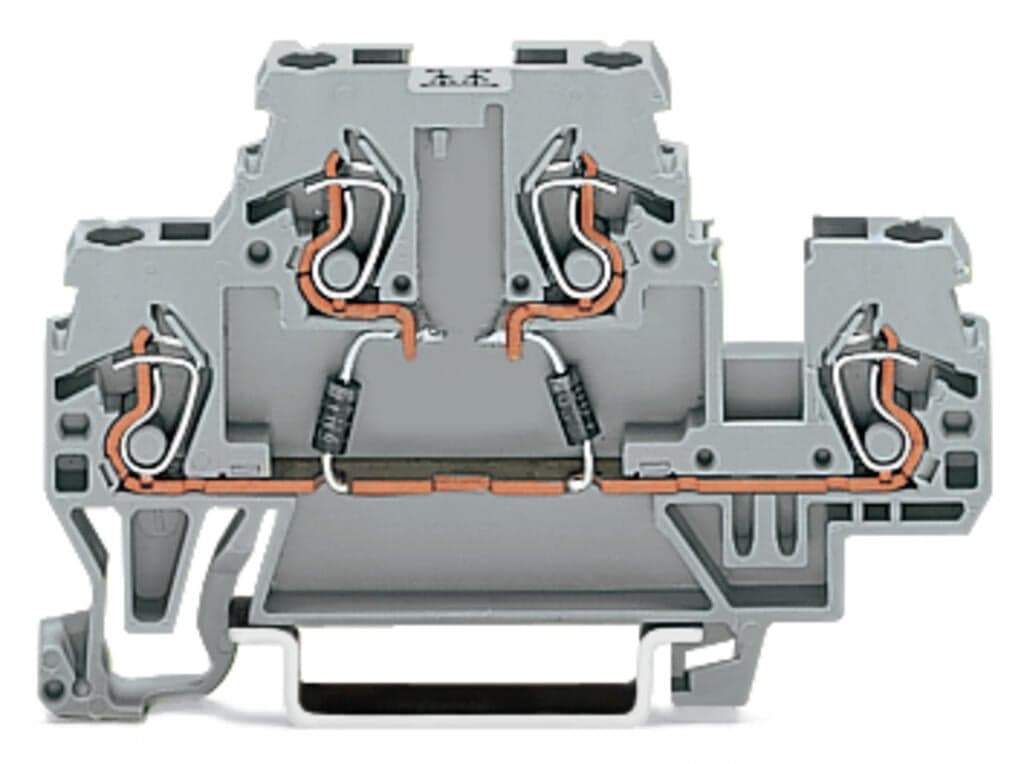

Product Model
870-542/281-488
Selling Points
- 1CAGE CLAMP Technology: Secure wire connections with WAGO's patented CAGE CLAMP spring connections.
- 2DIN-35 Rail Compatibility: Mounts seamlessly on DIN-35 rail systems (35 x 15 and 35 x 7.5).
- 3Robust Insulation: Made from high-quality polyamide (PA66) for reliable electrical insulation.
- 4Versatile Wire Range: Accommodates wire sizes from 0.08 mm² to 2.5 mm² or #28 AWG to #12 AWG.
- 5High Current Rating: Rated for a current of 0.5 A, ensuring efficient power distribution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 4 |
Total number of potentials | 1 | Number of levels | 2 |
Width | 5?mm?/ 0.197?inches | Height | 70?mm?/ 2.756?inches |
Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.192MJ |
Weight | 9.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198695 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | aec0481b-8a8d-4217-954b-fd3daaaf8878 | SCIP notification number (Belgium) | 661ded28-5681-4069-88c8-9381611f0b1f |
SCIP notification number (Bulgaria) | aa5f602b-cce1-48d4-b403-c9b7579ade60 | SCIP notification number (Czech Republic) | 95fb00d8-2141-4fb1-8447-05765fe3482c |
SCIP notification number (Denmark) | 6a656dc0-b6b5-4552-8b31-64634eb8d9e3 | SCIP notification number (Finland) | 48d2b130-ad20-42ce-a417-608539589621 |
SCIP notification number (France) | 27c3148d-6a98-4478-97c7-37d1d82ea3a8 | SCIP notification number (Germany) | 8f83e990-d681-4846-9c01-b36e14009fc6 |
SCIP notification number (Hungary) | 66d66852-25db-4656-867c-efd9fab96fe4 | SCIP notification number (Italy) | 8edb7641-05d7-408d-86cb-e62ab72f6cf9 |
SCIP notification number (Netherlands) | e27c3d92-3085-4239-8112-0cad15affe7a | SCIP notification number (Poland) | 712a137d-6c22-403e-b143-27627539cda8 |
SCIP notification number (Romania) | 108c7ffb-9cf8-44bd-a766-06fcc9d4b37a | SCIP notification number (Sweden) | 1ee1002f-91f3-4e63-be08-299083d3683e |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
