Product Model
870-567
Selling Points

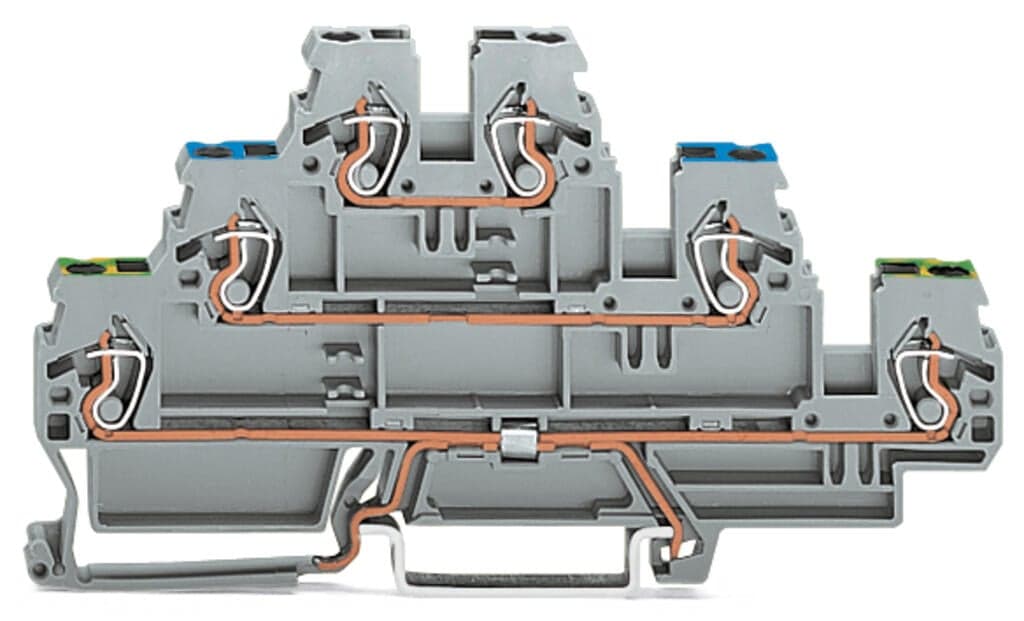

- 1Efficient Connection Solution: The WAGO 870-567 terminal block offers a compact, triple-deck design for easy wiring and efficient use of space.
- 2DIN-Rail Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5, making it versatile for various industrial applications.
- 3CAGE CLAMP Connections: Utilizes CAGE CLAMP spring connections for secure and reliable wire connections.
- 4High Current Capacity: Supports up to 24A, making it suitable for demanding electrical applications.
- 5Versatile Wire Accommodation: Accommodates wires from 0.08mm² to 2.5mm², covering a wide range of conductor sizes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 6 |
Total number of potentials | 3 | Number of levels | 3 |
Width | 5?mm?/ 0.197?inches | Height | 106?mm?/ 4.173?inches |
Depth from upper-edge of DIN-rail | 52.5?mm?/ 2.067?inches | Potential Marking | PE/N/L |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.275MJ | Weight | 19g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454129095 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 1.532W | Rated current I<sub>N</sub> for specified power loss | 24A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
