Product Model
870-590/281-410
Selling Points

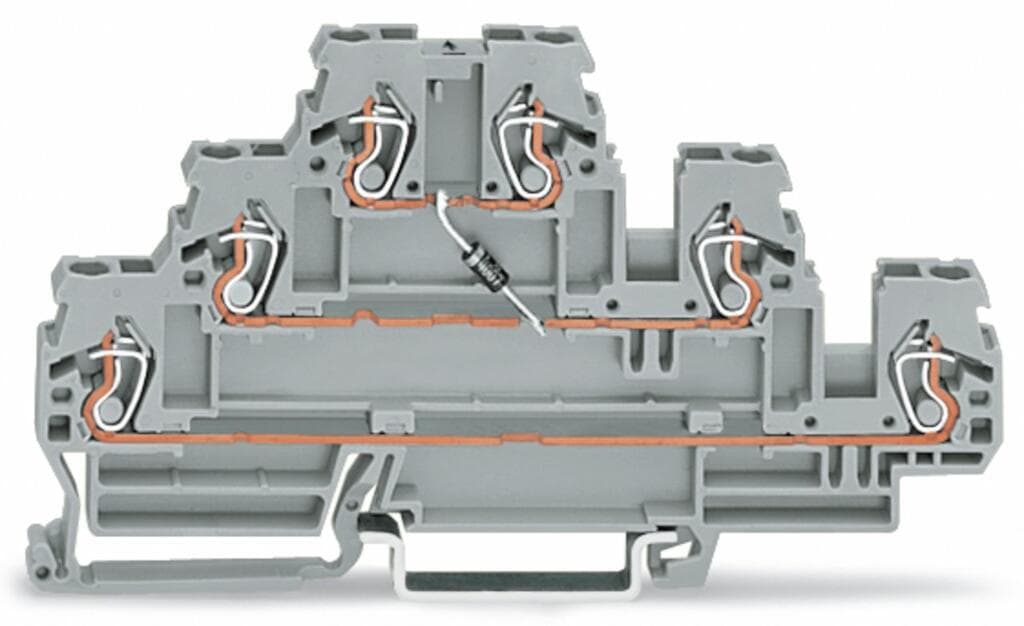

- 1The WAGO 870-590/281-410 terminal block uses CAGE CLAMP technology for quick and secure connections.
- 2Built with polyamide (PA66) insulation material for long-lasting performance.
- 3Suitable for DIN-rail 35 x 15 and 35 x 7.5 mounting types, ensuring flexibility in installation.
- 4Rated for 0.5 A, making it reliable for various electrical applications.
- 5Front-entry wiring design simplifies the wiring process, reducing labor hours significantly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 6 |
Total number of potentials | 2 | Number of levels | 3 |
Width | 5?mm?/ 0.197?inches | Height | 106?mm?/ 4.173?inches |
Depth from upper-edge of DIN-rail | 52.5?mm?/ 2.067?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.275MJ |
Weight | 17.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198749 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 39d115bc-056c-4860-bfeb-8711b2e5c698 | SCIP notification number (Belgium) | 6b03f7f0-9eeb-4c8d-86e7-35ab218268a2 |
SCIP notification number (Bulgaria) | 4a942efe-f8e7-4359-9c89-9c237eb2bee0 | SCIP notification number (Czech Republic) | 4d648531-610e-49c0-9a21-721210e0cbf6 |
SCIP notification number (Denmark) | fad1d2aa-6920-4776-91c4-692dc48ae3e6 | SCIP notification number (Finland) | d76bcbbd-9b38-4c17-926c-06855f1722cb |
SCIP notification number (France) | 7095d179-20b9-4bca-8815-10b83599c7df | SCIP notification number (Germany) | 65cb9ead-3131-4618-a758-7fd02a068985 |
SCIP notification number (Hungary) | f16b8d04-ccc9-4920-8002-34286c2feb82 | SCIP notification number (Italy) | 6680a67b-f7de-48bb-a06e-488bc48beafb |
SCIP notification number (Netherlands) | 32e4950a-6fda-4459-9209-abbefbf235ee | SCIP notification number (Poland) | a583f46c-6a9d-4602-9328-0859d4733d31 |
SCIP notification number (Romania) | 1e3ffdbc-ef95-4d90-bfc9-02fc4dfbe58d | SCIP notification number (Sweden) | 7bf3dd8f-2a73-4853-959f-5693fad79e16 |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
