Product Model
870-590/281-675
Selling Points

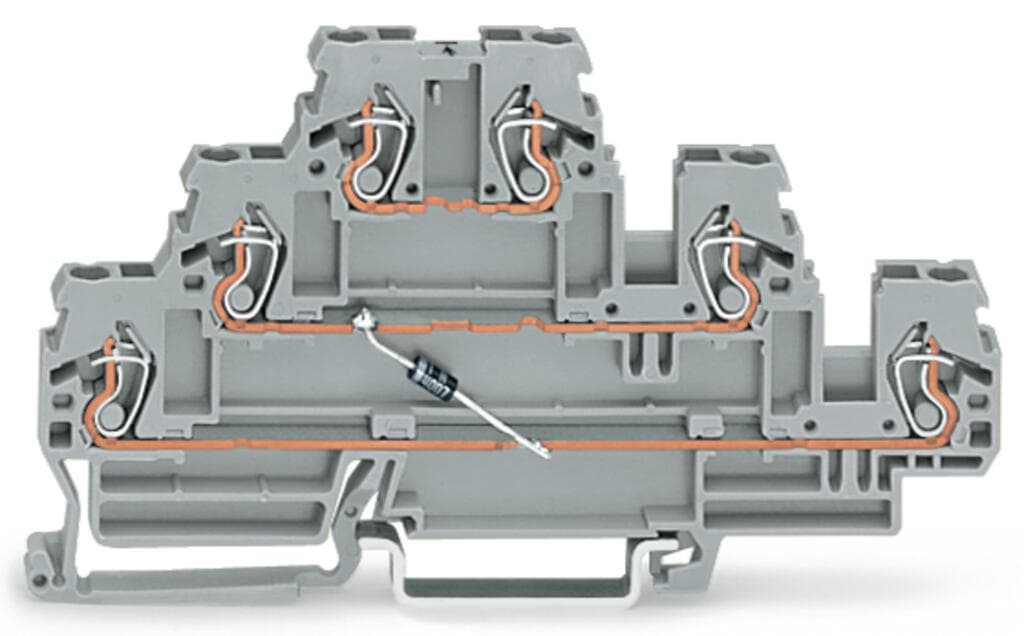

- 1Accommodates three feed-through poles with three clamps each.
- 2Includes a 1N4007 diode for protection against voltage spikes.
- 3Secure and reliable spring connections for copper conductors.
- 4Designed for mounting on DIN-35 rail (35 x 15 and 35 x 7.5).
- 5Rated for 0.5A current, suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 6 |
Total number of potentials | 2 | Number of levels | 3 |
Width | 5?mm?/ 0.197?inches | Height | 106?mm?/ 4.173?inches |
Depth from upper-edge of DIN-rail | 52.5?mm?/ 2.067?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.275MJ |
Weight | 17.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198763 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 6fc16d81-3fd1-49c0-b775-e3cb7e8dbe74 | SCIP notification number (Belgium) | c2601557-69fa-49ca-8fff-0d6c77cd5fc4 |
SCIP notification number (Bulgaria) | e397c9f5-52d8-4790-94a3-488ff33bc409 | SCIP notification number (Czech Republic) | 4632d5e9-7c02-459d-a16c-af17e6176acc |
SCIP notification number (Denmark) | 97cb8459-85b4-414a-9d17-2fa97d02528e | SCIP notification number (Finland) | 0ccaec20-cdd2-4d10-8eb7-e98511811e70 |
SCIP notification number (France) | 2a0bfd76-0a75-4d4d-a207-9331281623c9 | SCIP notification number (Germany) | b2fbbe9c-ebd3-46f2-a955-430ef6a30b30 |
SCIP notification number (Hungary) | 859a6074-dc75-4b00-965a-86dd8e79b56d | SCIP notification number (Italy) | 61e673fb-7b01-4f18-bf36-71c8b0fac3a1 |
SCIP notification number (Netherlands) | f1cf8e93-1298-4e9d-83a9-6c429839e26d | SCIP notification number (Poland) | ffe0c4d4-47a7-4793-85fd-8fa2a61147d6 |
SCIP notification number (Romania) | 562e6327-e22d-458a-b6b0-f82ed3988106 | SCIP notification number (Sweden) | 54139e9a-843c-46ef-8104-75119a3763db |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
