Product Model
870-596/281-674
Selling Points

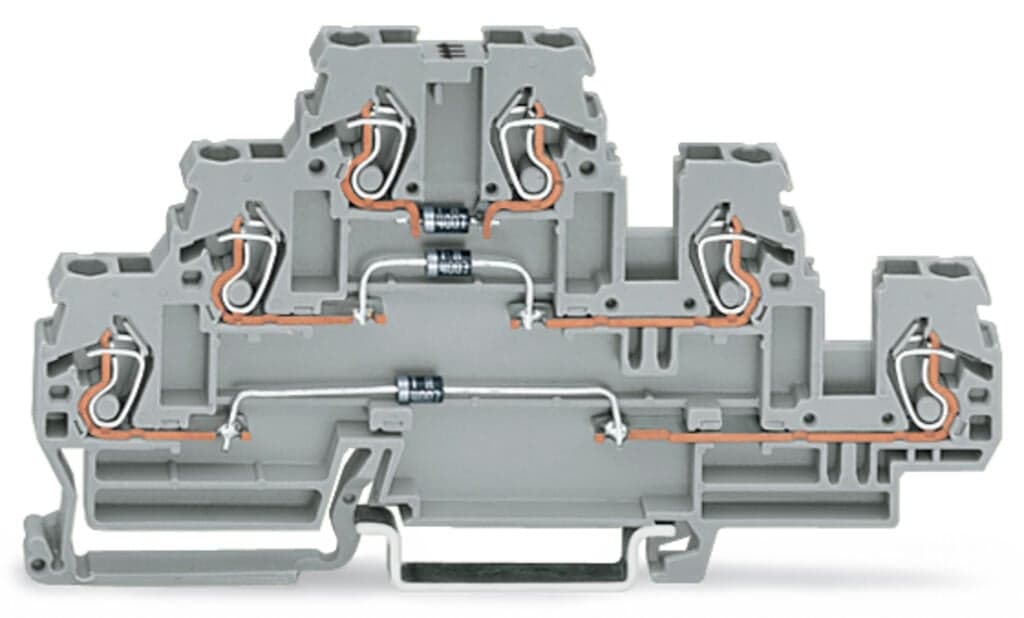

- 1Triple-Deck Design: Three diodes (1N4007) for enhanced protection and reliability.
- 2CAGE CLAMP Connections: Secure and easy-to-use spring connections for copper conductors.
- 3DIN Rail Mounting: Compatible with DIN-35 rail (35 x 15 / 35 x 7.5) for easy installation.
- 4Robust Copper Conductors: Supports wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG).
- 5Gray Housing: Made of polyamide (PA66) for insulation and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 6 |
Total number of potentials | 2 | Number of levels | 3 |
Width | 5?mm?/ 0.197?inches | Height | 106?mm?/ 4.173?inches |
Depth from upper-edge of DIN-rail | 52.5?mm?/ 2.067?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.305MJ |
Weight | 16.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198855 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | ab66116f-904e-4589-83ae-4dc544a42f1d | SCIP notification number (Belgium) | 8524213f-df1f-40f1-bfad-98471c878aa9 |
SCIP notification number (Bulgaria) | e191ee45-8123-460c-a4d7-b5e5679c36e0 | SCIP notification number (Czech Republic) | 36359cd8-de91-4911-88dd-14a873fcbb7e |
SCIP notification number (Denmark) | da2e3b3c-f05b-4ae0-9864-4f4d51fc8069 | SCIP notification number (Finland) | 6a061842-6887-4696-8cb2-a2bfe32651bc |
SCIP notification number (France) | 1ad48015-ae68-4ce4-8047-9f5a862463a2 | SCIP notification number (Germany) | b0bd4dbf-0e9f-4907-9512-a94f1c308997 |
SCIP notification number (Hungary) | 3e8b50b6-7b69-400e-9e39-8d8613291b41 | SCIP notification number (Italy) | 363698fb-ce67-4897-88f6-69d44e371fcd |
SCIP notification number (Netherlands) | dc2afdda-63b4-48bd-9b4e-437da205bca5 | SCIP notification number (Poland) | e367a97c-8147-48bf-a457-b511d4d7ba9b |
SCIP notification number (Romania) | 2e10f0af-7603-408b-9079-9781968792d9 | SCIP notification number (Sweden) | ea8d5596-6fd7-4845-aa36-4b5a117b6058 |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
