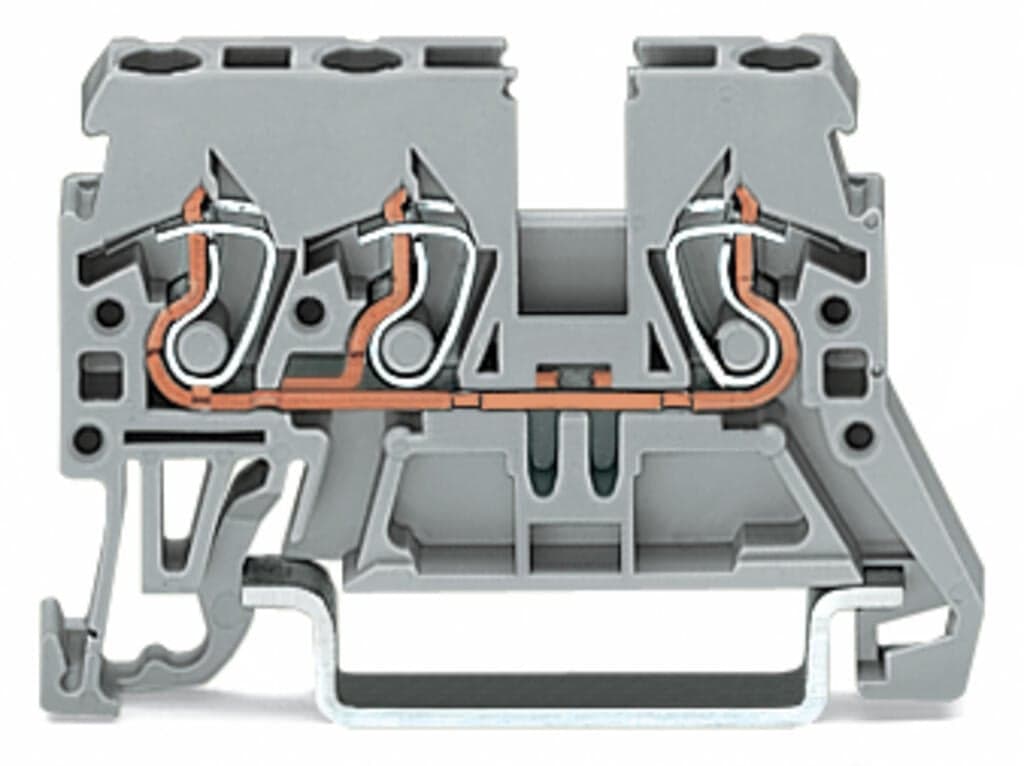

Product Model
870-685
Selling Points
- 1DIN-Rail Compatibility: Mounts on DIN-rail 35 x 15 and 35 x 7.5 for versatile installation.
- 2CAGE CLAMP Technology: Features secure spring connections for reliable wire management.
- 3Wire Size Range: Accommodates wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG).
- 4Rated Current: Supports a rated current of 24A for efficient power distribution.
- 5Side and Center Marking: Includes side and center marking slots for easy identification and organization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 3 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height | 49?mm?/ 1.929?inches |
Depth from upper-edge of DIN-rail | 27.5?mm?/ 1.083?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.108MJ |
Weight | 6.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454094591 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 24A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.766W |
Rated current I<sub>N</sub> for specified power loss | 24A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
