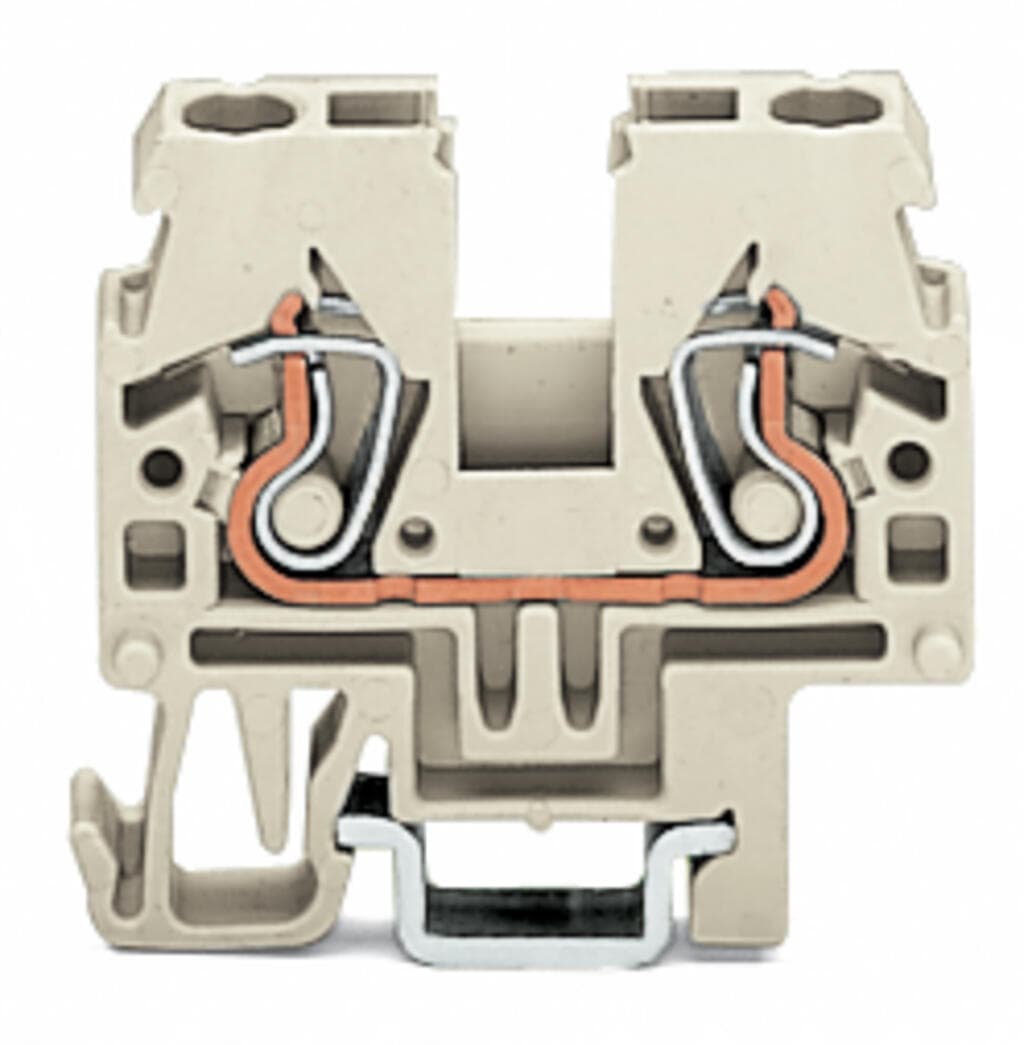

Product Model
870-919
Selling Points
- 1Ex e II Compliant: Suitable for hazardous environments with high safety standards.
- 2CAGE CLAMP Technology: Fast, vibration-proof, and maintenance-free spring pressure connection.
- 3DIN-15 Rail Mounting: Easy installation on standard DIN-15 rails.
- 4Wide Wire Range: Supports solid and stranded conductors from 0.08 to 4 mm².
- 5High Current Rating: Rated for 22 A, ensuring reliable power distribution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 2 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height | 34.5?mm?/ 1.358?inches |
Depth from upper-edge of DIN-rail | 26.5?mm?/ 1.043?inches | Design | horizontal type |
Mounting type | DIN-15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.069MJ |
Weight | 3.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918852395 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated current | 22A | Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 440V | Power loss, per pole (potential) | 0.644W |
Rated current I<sub>N</sub> for specified power loss | 22A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
