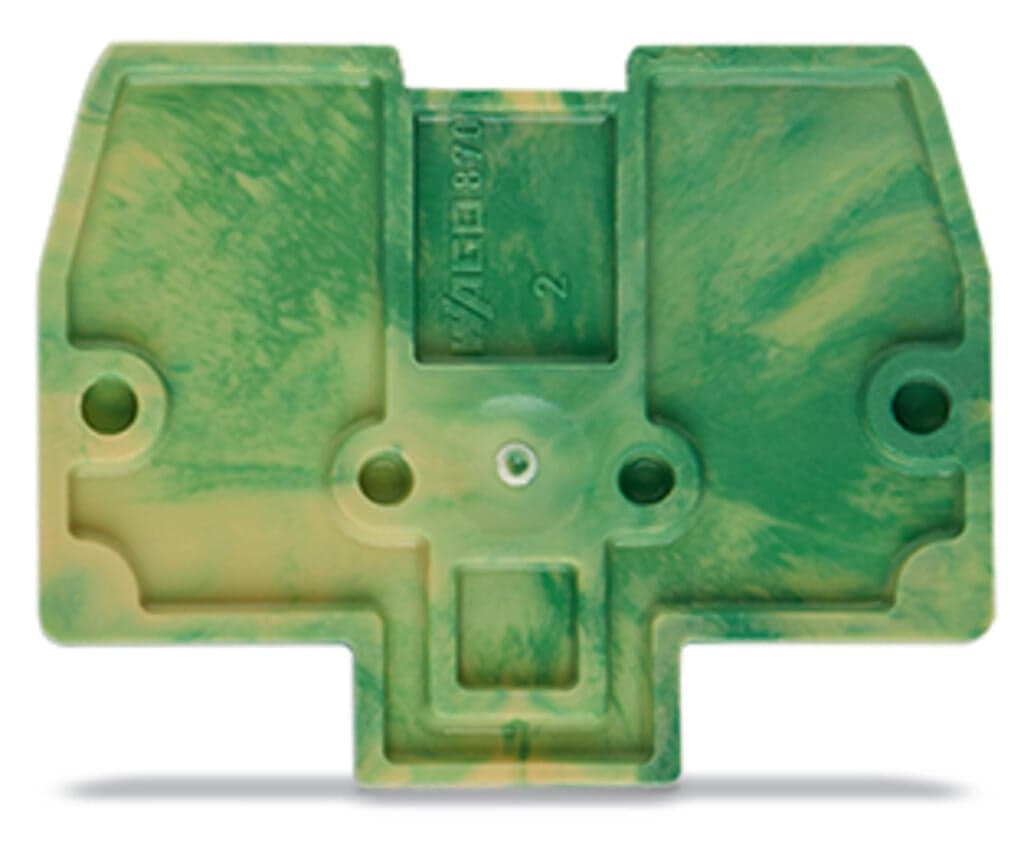

Product Model
870-926
Selling Points
- 1High-Quality Material: Made from durable 2 mm thick material.
- 2Compliant with Standards: Meets V0 flammability class per UL94.
- 3Specifically Designed: For 2-conductor ground conductor Ex term applications.
- 4Compact Dimensions: 27.5 mm depth, 33.4 mm height, and 2 mm width.
- 5Easy Installation: Compatible with various rail and chassis terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 33.4?mm?/ 1.315?inches |
Depth | 27.5?mm?/ 1.083?inches | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.032MJ | Weight | 1.1g |
Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454269869 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
