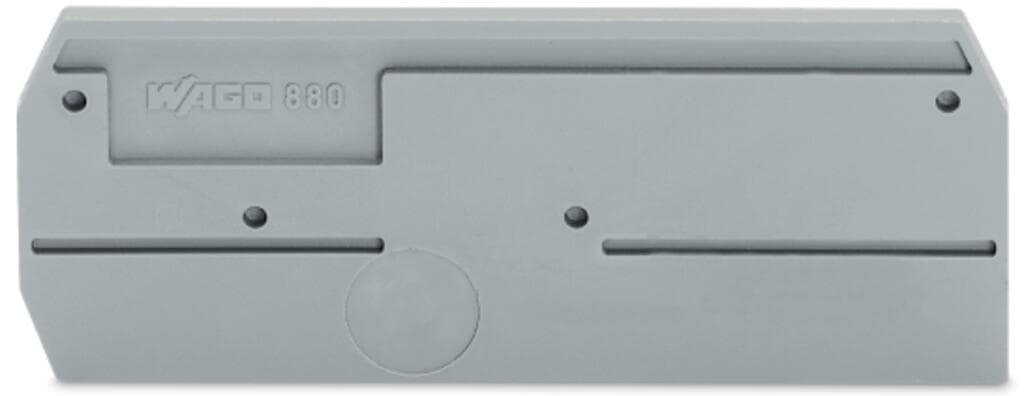

Product Model
880-308
Selling Points
- 12.5 mm thick, gray end and intermediate plate for robust performance.
- 2Designed for seamless integration with DIN rail terminal blocks.
- 3Meets UL94 V0 flammability class for enhanced safety.
- 428.6 mm height, 72.7 mm depth for efficient use in confined spaces.
- 5Suitable for various industrial automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 72.7?mm?/ 2.862?inches |
Depth | 28.6?mm?/ 1.126?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.11MJ | Weight | 3.6g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332362047 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
