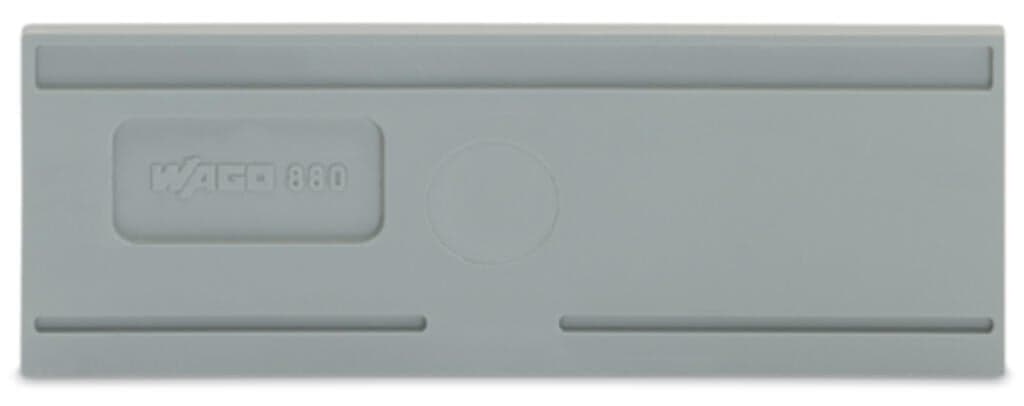

Product Model
880-309
Selling Points
- 1Made from durable, 2 mm thick material for long-lasting performance.
- 2Optimized for easy installation and secure connections.
- 3Gray finish for easy identification in industrial settings.
- 4Meets V0 flammability standards for safety in electrical applications.
- 5Compliant with RoHS regulations, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 72.7?mm?/ 2.862?inches |
Depth | 27.1?mm?/ 1.067?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.084MJ | Weight | 3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332362054 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
