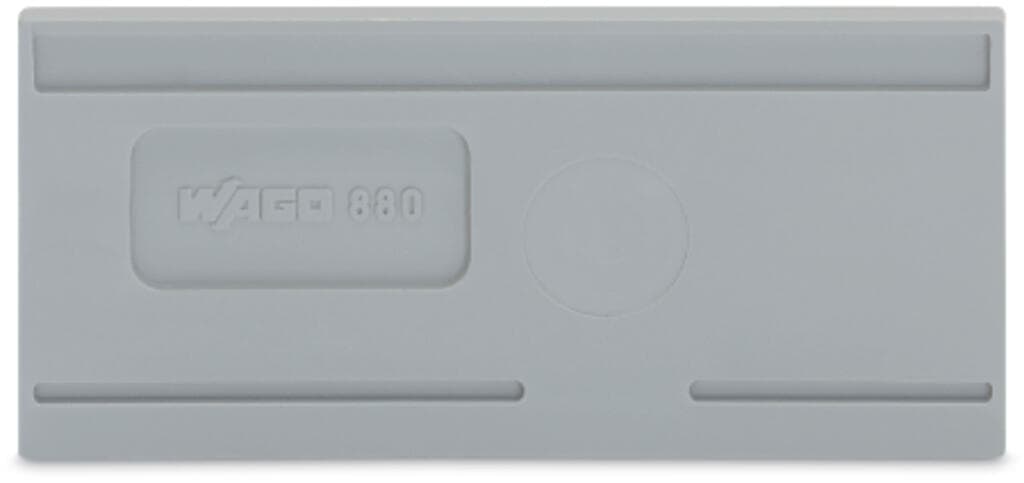

Product Model
880-326
Selling Points
- 1High-Quality Material: Made from polyamide (PA66) for durability and insulation.
- 2Compliant with Standards: Meets RoHS compliance and UL94 V0 flammability class.
- 3Robust Design: Oversized separator plate with a 2mm thickness for enhanced performance.
- 4Easy Installation: Designed for use in DIN rail terminal blocks, ensuring seamless integration.
- 5Packaged in Sets: Available in packs of 25 units for convenient bulk purchasing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 58.5?mm?/ 2.303?inches |
Depth | 27.1?mm?/ 1.067?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.069MJ | Weight | 2.3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332362030 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
