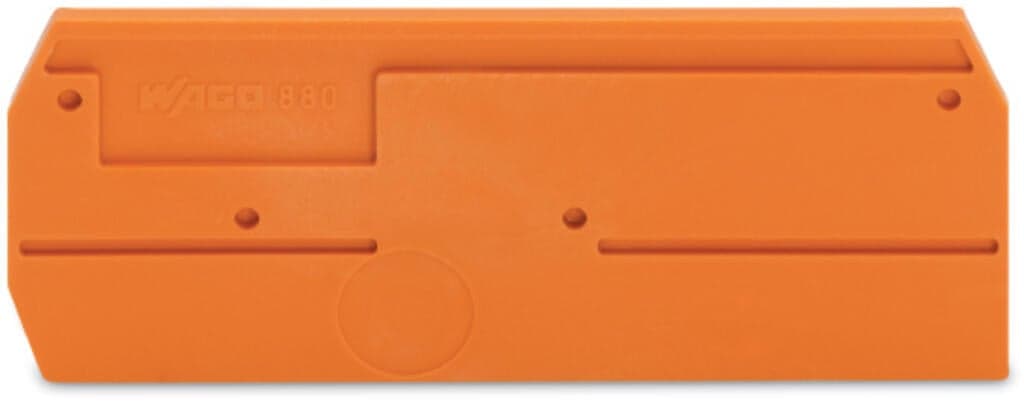

Product Model
880-339
Selling Points
- 1High-Quality Material: Made from durable, 2.5 mm thick material for long-lasting performance.
- 2Compact Design: Measuring 28.6 mm in depth and 72.7 mm in height, perfect for space-constrained applications.
- 3Flammability Class V0: Compliant with UL94 V0 flammability standards for enhanced safety.
- 4Fire Load Resistance: Withstands a fire load of 0.110 MJ, ensuring reliability under extreme conditions.
- 5Easy Installation: Designed for seamless integration into rail and chassis systems, ensuring quick and efficient setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 72.7?mm?/ 2.862?inches |
Depth | 28.6?mm?/ 1.126?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.11MJ | Weight | 3.6g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332361965 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
