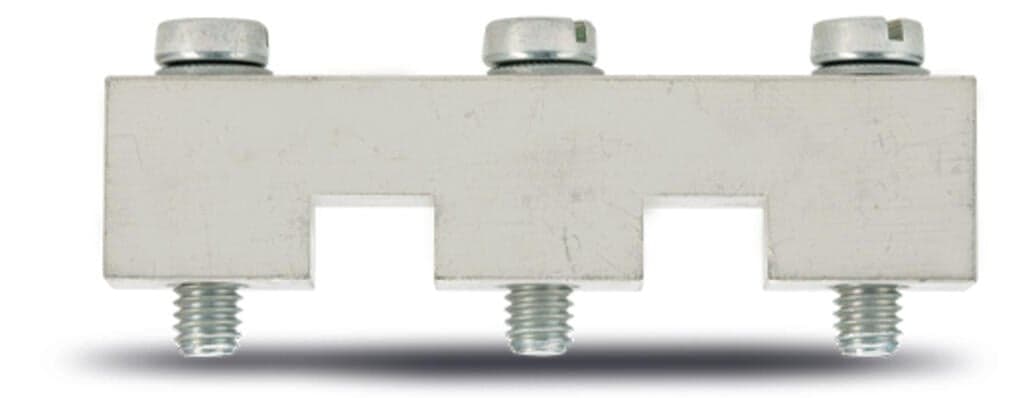

Product Model
883-1243
Selling Points
- 1High current capability up to 290 A.
- 2Silver-colored, unplated for durability.
- 3RoHS compliant for environmental safety.
- 4Nominal voltage III 3: 1000 V.
- 5Available in packs of 10 for efficient use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 71?mm?/ 2.795?inches | Depth | 10?mm?/ 0.394?inches |
Tightening torque | 3.2 … 3.7?Nm | Note (material data) | Information on material specifications can be found here |
Color | silver-colored | Weight | 97.9g |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4055143940290 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 1000V |
Rated current | 269A | Current at conductor cross-section (max.) mm2 | 290A |
Specifications may be subject to change without notice
