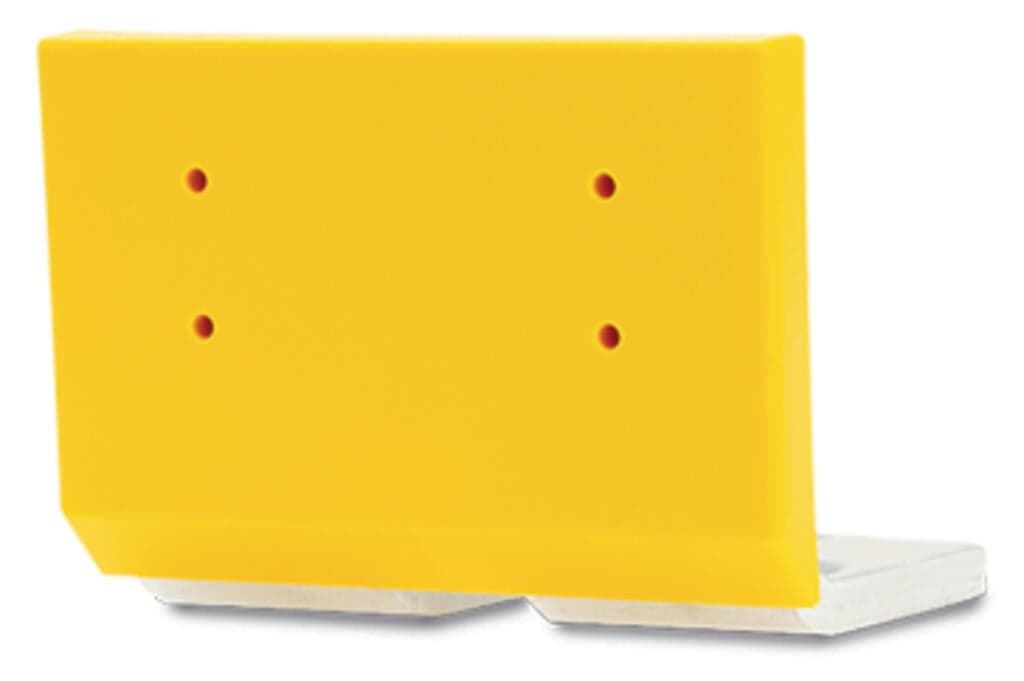

Product Model
883-2442
Selling Points
- 1Rated for 1000V to ensure safe and reliable electrical connections.
- 2Supports up to 380A, making it suitable for demanding applications.
- 3Features insulation for added safety and durability.
- 4Measures 66.3 mm in width, perfect for DIN-35 rail mounting.
- 5Easy identification with its distinctive yellow color, enhancing safety and organization in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 66.3?mm?/ 2.61?inches | Note (material data) | Information on material specifications can be found here |
Color | yellow | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V2 | Weight | 204.6g |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4055143940566 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 1000V |
Rated current | 380A |
Specifications may be subject to change without notice
