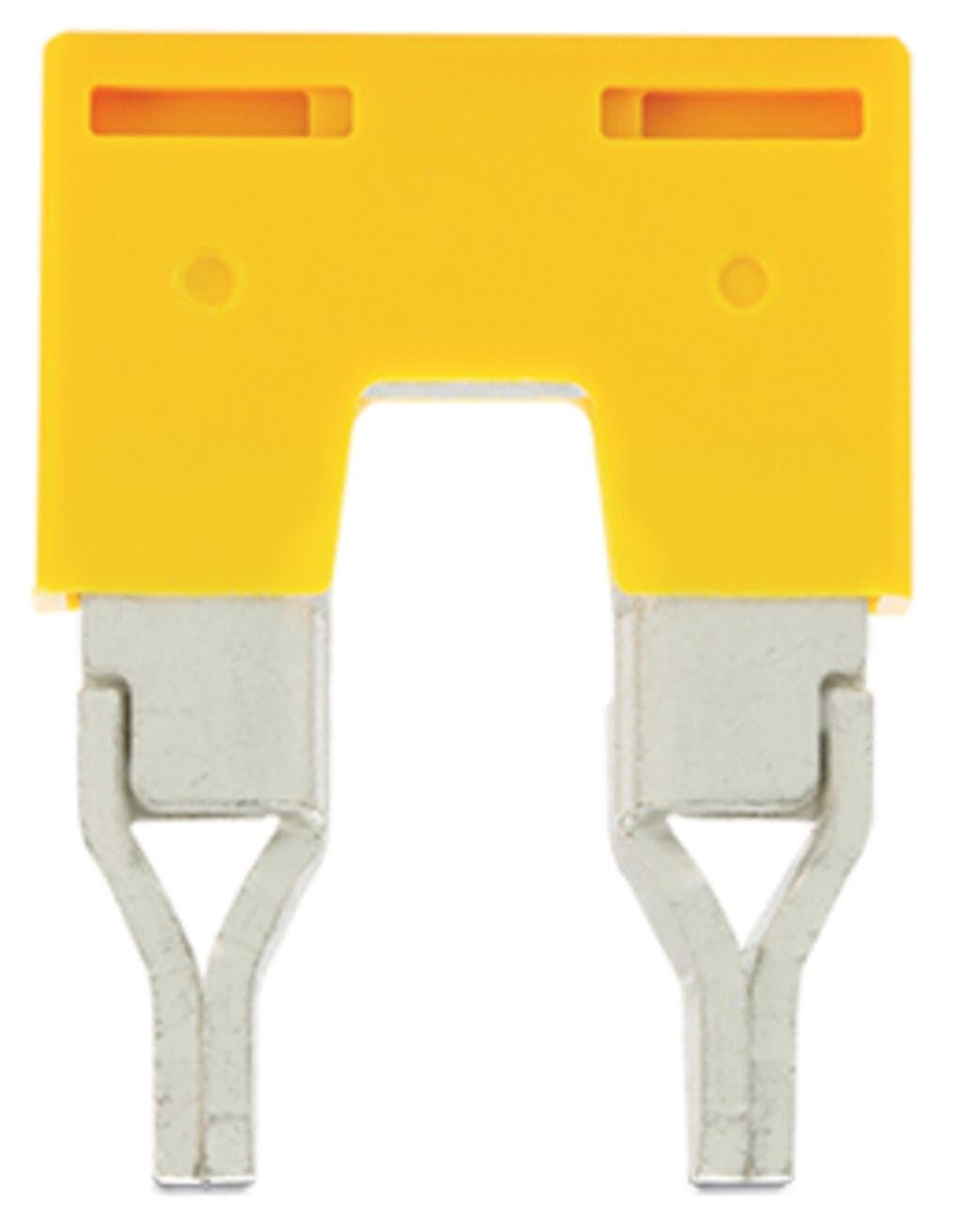

Product Model
883-3542
Selling Points
- 1High-Rated Current: 125A rated current ensures reliable connections in demanding industrial environments.
- 2Insulated Design: Polyamide (PA66) insulation material provides excellent electrical insulation and durability.
- 3Wide Operating Temperature: Continuous operating temperature range from -35°C to +105°C for versatile use.
- 4Compliant with Regulations: RoHS compliant, meeting environmental product compliance standards.
- 5Compact Size: 26.5mm width and 6.2mm depth for easy integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26.5?mm?/ 1.043?inches | Depth | 6.2?mm?/ 0.244?inches |
Jumper assignment | 1-2 | Note (material data) | Information on material specifications can be found here |
Color | yellow | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V2 | Weight | 14.1g |
Continuous operating temperature | -35 … +105?°C | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055143940917 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated current | 125A |
Current at conductor cross-section (max.) mm2 | 150A |
Specifications may be subject to change without notice
