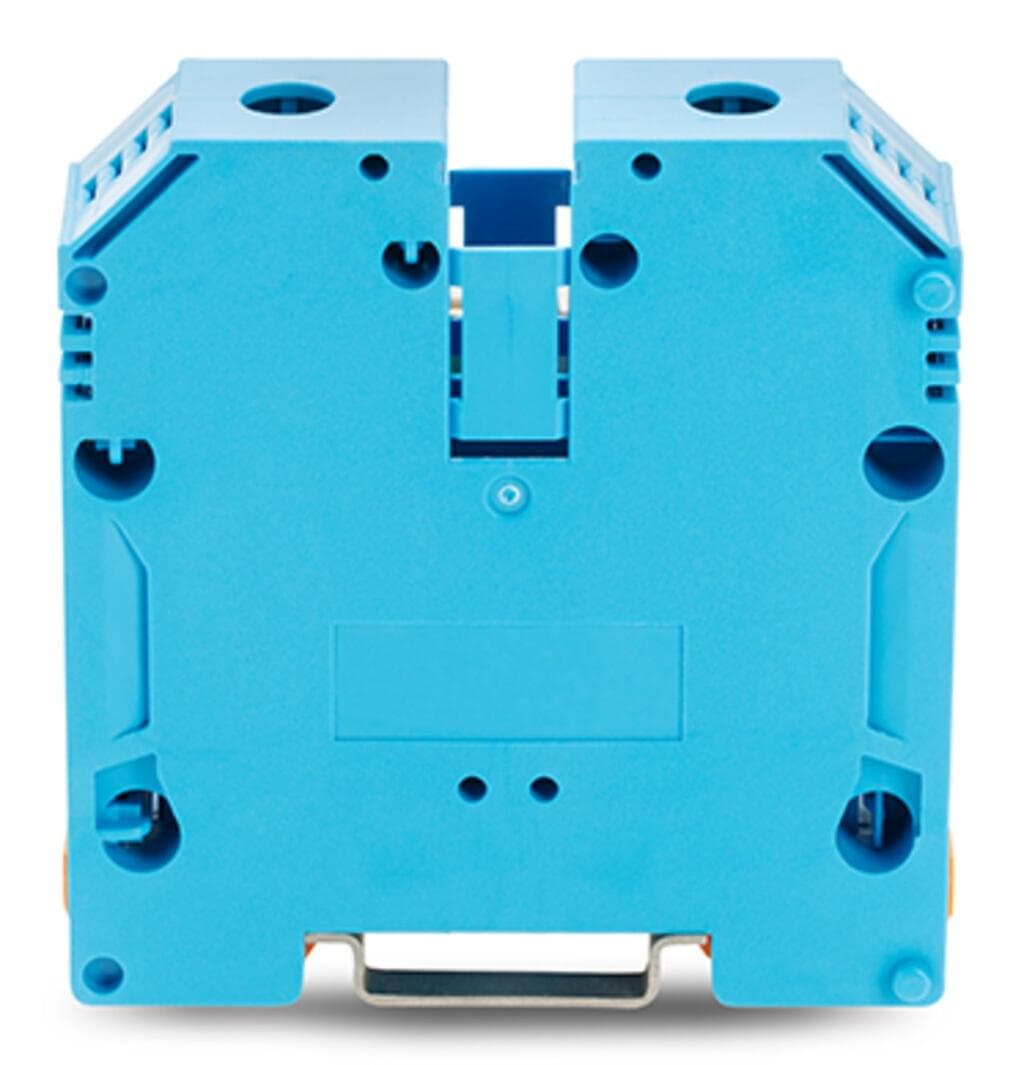

Product Model
883-7004
Selling Points
- 1High Current Rating: Supports up to 192 A for efficient power distribution.
- 2Durable Design: Constructed with robust materials for long-lasting performance.
- 3Screw-Type Connection: Easy and secure connection method for conductors.
- 4UL 1059 Approval: Meets stringent safety standards for reliable operation.
- 5Compact Size: 70 mm² terminal block with a depth of 84 mm for space-efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 20.5?mm?/ 0.807?inches | Height | 76.5?mm?/ 3.012?inches |
Depth from upper-edge of DIN-rail | 84?mm?/ 3.307?inches | Tightening torque | 6 … 12?Nm |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 141g | Continuous operating temperature | -35 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143940924 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 192A | Current at conductor cross-section (max.) mm2 | 232A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 205A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 205A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 205A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 205A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 205A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 205A |
Power loss, per pole (potential) | 6.267W | Rated current I<sub>N</sub> for specified power loss | 192A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | Screw connection |
Actuation type | T-wrench; 6 mm | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors. These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors.” | Nominal cross-section | 70 mm2 |
Solid conductor | 10 … 95?mm2?/ 8 … 3/0?AWG | Stranded conductor | 10 … 95?mm2?/ 8 … 3/0?AWG |
Fine-stranded conductor | 10 … 70?mm2?/ 8 … 2/0?AWG | Fine-stranded conductor; with insulated ferrule | 10 … 70?mm2?/ 8 … 2/0?AWG |
Strip length | 22?mm?/ 0.87?inches | Wiring direction | Side-entry wiring |
Screw thread | M8 |
Specifications may be subject to change without notice
