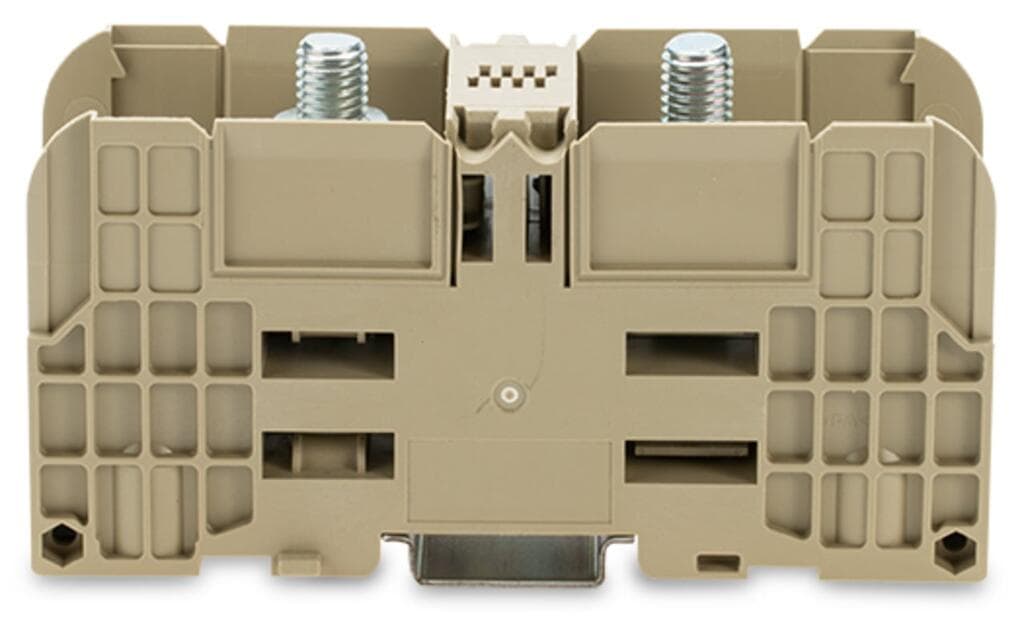

Product Model
884-1200
Selling Points
- 1High-Quality Electrical Connection: The WAGO 884-1200 provides a robust and reliable connection with its 120 mm² nominal cross-section.
- 2UL/CSA Approvals: Meets UL 1059 and CSA standards for safety and performance in various electrical applications.
- 3Bolt-Type Connection: Utilizes bolt-type connections for easy and secure termination of conductors.
- 4Durable Material: Constructed with polyamide (PA66) insulation for long-lasting durability.
- 5Versatile Mounting Options: Compatible with DIN-35 rail and panel mounting for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Connection position | top |
Width | 42?mm?/ 1.654?inches | Height | 133?mm?/ 5.236?inches |
Depth from upper-edge of DIN-rail | 72?mm?/ 2.835?inches | Tightening torque | 10 … 20?Nm |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | beige | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 230g |
Continuous operating temperature | -40 … +120?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143941815 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 269A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 1000V |
Rated current UL (Use Group B) | 225A | Rated current UL (Use Group B), factory wiring only | 310A |
Rated voltage UL (Use Group C) | 1000V | Rated current UL (Use Group C) | 225A |
Rated current UL (Use Group C), factory wiring only | 310A | Power loss, per pole (potential) | 8.683W |
Rated current I<sub>N</sub> for specified power loss | 269A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Bolt-type connection | Actuation type | Open-end, ring, socket wrench; 17 mm |
Connectable conductor materials | Copper | Nominal cross-section | 120 mm2 |
Clamping range | 6 … 120?mm2?/ 10?AWG … 250?kcmil | Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors |
DIN 46234: 1 cable lug per side | 6 … 150?mm2 | DIN 46234: 2 cable lugs per side | 6 … 120?mm2 |
Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors | DIN 46235: 1 cable lug per side | 16 … 150?mm2 |
DIN 46235: 2 cable lugs per side | 16 … 120?mm2 | Thread size | M10 |
Specifications may be subject to change without notice
